IDU-680 EFIS

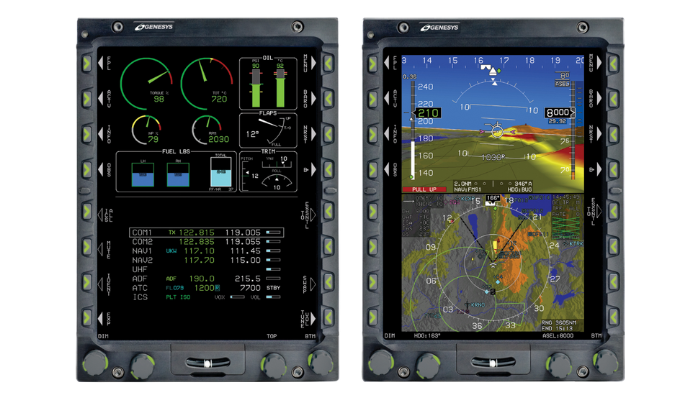

Product Images for PP (7x4) - idu-680-efis-7x4

IDU-680 EFIS smart display suites feature a variety of PFD and MFD formats that can be configured to show flight instruments, moving map, HSI, flight planner, traffic, terrain, weather radar, datalink, video, radio/audio management, and engine displays. The IDU-680s also feature a built-in Flight Management System and integrated Class-A TAWS (Terrain Awareness and Warning System) for enhanced safety and workload management. The Genesys avionics suite boasts an open architecture for elegant interfacing with a variety of special-mission equipment.

Request a Quote
Jump To:
Features
Stress Test Video
Literature

Features

The Genesys 3D Synthetic Vision EFIS enhances safety, reduces pilot workload, increases flexibility, and lowers costs of operation. The Level A certified IDU-680 EFIS smart display utilizes ADAHRS and GPS SBAS data for precision aircraft operation including RNP and LPV approaches, and patented OASIS® (Open Architecture System Integration Symbology) to display engine information and CAS messages. The system also integrates with select radios and weather radar and offers expansion ports supporting a path for future growth.

Spend less on maintenance replacement parts while experiencing greater uptime and higher mission completion rates with our modern avionics suite. Built-in support/interfaces for FLIR, Satcom, DF, HF/UHF, TACAN, Datalink, SELCAL, and tactical radios provide a low-cost path to future upgrades.

Our MIL-STD qualified, and NVG-compatible avionics offer robust and flexible performance for demanding environments and are available for both OEM new production and modernization of select aircraft.

The IDU-680 Includes:

  • 3D Synthetic Vision
  • Highway-In-The-Sky (HITS) Navigation
  • Geo-Referenced Hover Vector
  • Terrain Alerting and Warning System (TAWS & HTAWS)
  • Graphical Flight Management System (FMS)
  • Digital Flight Recorder (DFR)
  • Night Vision Compatibility
  • MIL-STD Qualification
  • Integrated Radio and Audio Management
  • And More

Designed For Harsh Environments

Our solutions to operate in harsh operational environments in order to ensure product reliability and dependability. These include high and low temperature, vibration, lightning strike, HIRF, altitude, sand and dust, humidity, water proofness, fluids susceptibility, salt and fog, and other environmental condition tests.
