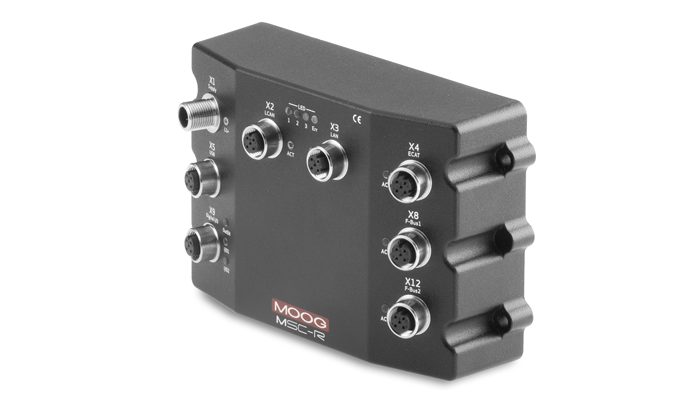

Moog Ruggedized Motion Controller - Legacy

Slide Background

The Moog Ruggedized Motion Controller is a ruggedized, freely programmable motion controller with integrated PLC functionality. It belongs to the M3000 family. Programming is completed with the Moog Axis Control Software (MACS), an integrated development environment, based on IEC 61131. The Moog Ruggedized Motion Controller is best suited for applications in rough environment where multiple axes need to be controlled via a fieldbus interface. Typical applications are closed-loop control with or without profile generation of multiple electric or hydraulic axes.

Important Note: This is a legacy product which means it cannot be used for new designs. Please get in touch with your local office for recommended replacement products.

    CONTACT OUR EXPERTS >

    Jump To:
    Benefits
    Specifications
    Resources

    Benefits

    • Ruggedized design (IP67, 30 g vibration, 50 g shock)
    • Higher machine productivity through short cycle times
    • Fast start-up commissioning due to easy-to-use software and flexible hardware
    • Maximum flexibility via support of user-defined open control structures
    • Special Moog libraries of pre-programmed Function Blocks enable users to solve advanced control problems quickly
    • Quick integration through multiple connectivity options
    • Convenience of remote servicing and debugging





    Specifications
     CPU

    400 MHz

    Memory128 MB RAM, 32 MB Flash EEPROM
    Minimum Task Cycle Time (Base Tick)100 micro seconds
    Operating Temperature Range

    -40 °C (-40 °F) to +70 °C (+158 °F)

    Protection SystemIP67
    Shock50 g, 6 directions, 3 ms
    Vibration30 g, 3 axis, 10 Hz to 2 kHz, 10 sweeps
    Standard Bus InterfaceEtherCAT Master, CAN/CANopen, Ethernet, USB
    Optional Bus InterfaceEtherCAT Slave, Profibus-DP Slave, 2nd CAN/CANopen
    Data Exchange via EthernetTCP/IP, UDP/IP
