Single Channel FORJ
Fiber Optic Rotary Joints (FORJ) are to optical signals what electrical slip rings are to electrical signals, a means to pass signals across rotating interfaces, particularly when transmitting large amounts of data. FORJs maintain the intrinsic advantages of fiber end to end. Moog has been producing Fiber Optic Rotary Joints for over twenty years.
Products
| Model | Fiber Type | Insertion Loss | Maximum Rotational Speed | Operating Temperature | Size: Minimum Length | Size: Flange Diameter | Size: Drum Diameter |
|---|---|---|---|---|---|---|---|

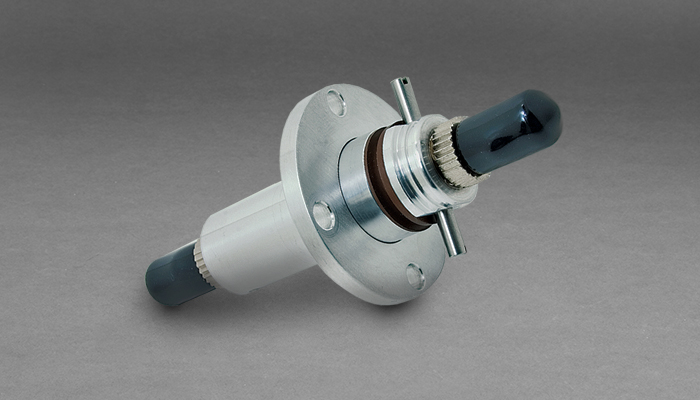

| FO228 | Multimode | 4.0 dB | 100 rpm | -40 to +75 °C | 1.75 in (44.45 mm) |
1.50 in (38.10 mm) |
0.73 in (18.54 mm) |
| FO197 | Multimode | 3.0 dB | 1000 rpm | -40 to +60 °C | 2.38 in (60.45 mm) |
1.50 in (38.10 mm) |
0.62 in (15.74 mm) |
| FO197S | Multimode | 3.0 dB | 100 rpm | -40° to +85°C | 2.38 in (60.6 mm) | 1.50 in (38.10 mm) | 0.62 in (15.9 mm) |

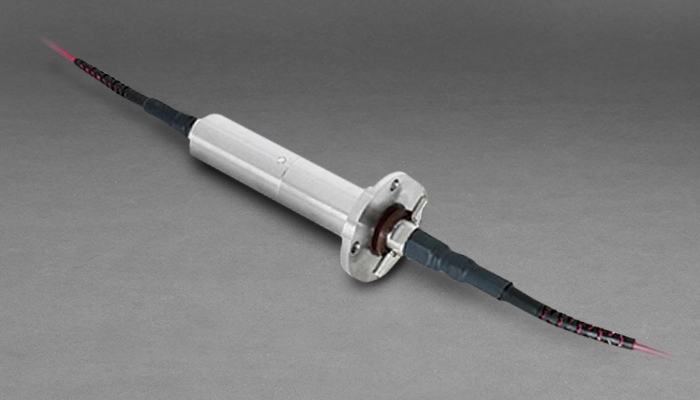

| FO206 | Singlemode | 3.5 dB | 1000 rpm | -40 to +60 °C | 2.36 in (59.94 mm) |
1.50 in (38.10 mm) |
0.77 in (19.55 mm) |
| FO285 | Singlemode | 3.5 dB | 1000 rpm | -55 to +75 °C | 1.02 in (25.90 mm) |
0.75 in (19.05 mm) |
0.37 in (9.4 mm) |
| FO286 | Multimode | 2.5 dB | 1000 rpm | -55 to +75 °C | 0.75 in (19.05 mm) |
0.75 in (19.05 mm) |
0.37 in (9.4 mm) |

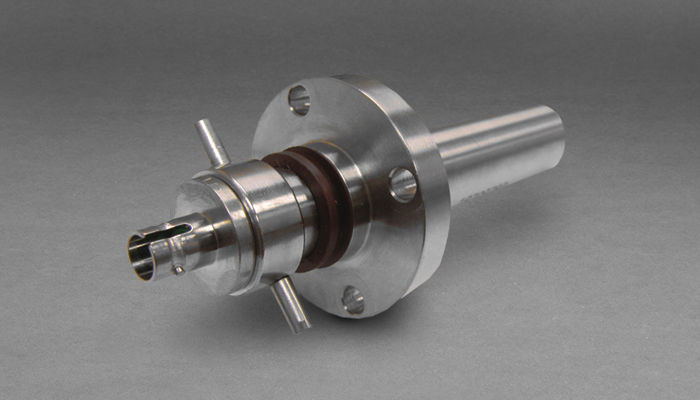

| FO310 | Singlemode and Multimode | 1.5 dB | 100 rpm | -40 to +85°C | 3.41 in (86.6 mm) |
1.5 in (38.1 mm) |
0.63 in (15.9 mm) |
