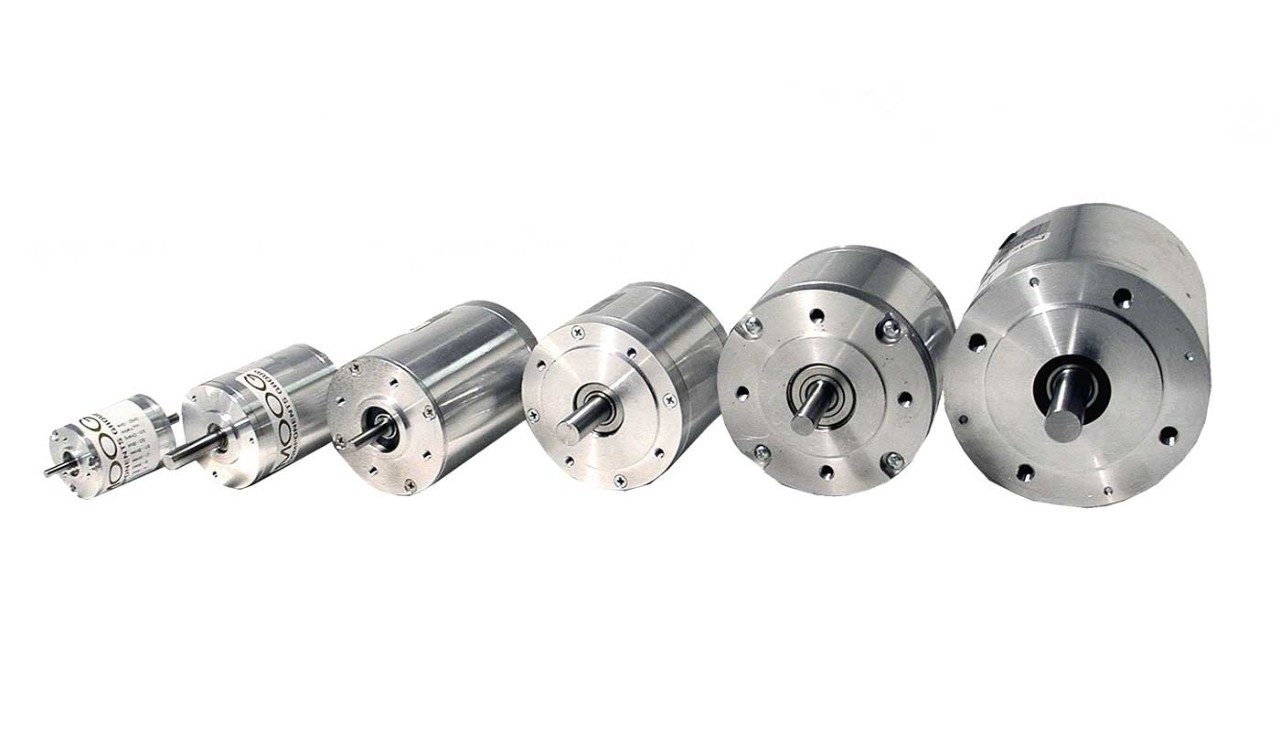

Silencer® BN Series Brushless DC Motors

Slide Background

The Silencer® BN series of brushless motors offers diameters from 1.2 inches to 4.1 inches and lengths from 1.3 inches to 5.5 inches. It offers continuous torques from 2.4 to 519 oz-in and speeds up to 20,000 rpm. Built for rugged applications and environments, the Silencer series motors feature bonded rare earth magnets and aluminum housings. Options include electronic drives, encoders and gearheads, as well as Hall effect, resolver and sensorless feedback. Our very quiet, efficient, brushless design is well suited for applications where low noise and reliable, long life operation are particularly important.

Utilizing bonded neo magnets, our BN series motors provide excellent value with their low cost and high torque. Each frame of the BN motors is available in four different lengths with a variety of electrical options to meet a wide range of commercial and industrial operating specifications.

Reliable, Low-cost Operation

An aluminum housing protects the unit in rugged applications and environments. Typical options include electronic drives, encoders and gearheads, as well as Hall effect, resolver and sensorless feedback.

For more information about how Moog's Silencer Series brushless DC motors can be tailored to fit your specific application, contact our motors experts.

Contact Our Experts

Jump To:
Overview
Specifications
Resources
Related Products

Features

  • Inside rotor construction for quick acceleration
  • 8 pole motor standard, 4 pole motors optional for high speed applications
  • High energy neodymium magnets
  • Safe, arcless operation
  • High torque per dollar ratio

Benefits

  • Operation at any single speed - not limited to AC frequency
  • Motor life is not limited to brush or commutator life
  • An essentially linear speed / torque curve
  • Efficient operation without losses associated with brushes and commutation or armature induction
  • Precise, variable speed control
  • Extremely quiet operation
  • Long-life operation

Markets

  • Medical equipment - pumps, blowers, electric scooters and wheelchairs
  • Automatic door and window openers
  • Computer-controlled embroidery machines
  • Scanners
  • Packaging equipment and printing products
  • HVAC equipment (air handling)
  • Robotic tape storage and retrieval
  • Semiconductor handling and insertion machines
  • Actuators

Specifications

Model Diameter Available Lengths Voltage Ratings (VDC) Range- Rated Torque Range- Rated Speed (rpm) Range-Rated Power (watts)
BN12 30,48 mm
(1,2 in)		 33,02 - 71,12 mm
(1,3 - 2,8 in)		 12/24/36 0,0127 - 0,0438 Nm
(1,8 - 6,2 oz-in)		 0-13753 17 - 44,7
BN17 43,18 mm
(1,7 in)		 38,1 - 63,5 mm
(1,5 - 2,5 in)		 12/24/36 0,058 - 0,126 Nm
(8,2 - 17,81 oz-in)		 0-13498 55 - 97
BN23 57,15 mm
(2,25 in)		 35,8 - 73,9 mm
(1,41 - 2,91 in)		 24/36/48 0,085 - 0,366 Nm
(12,1 - 51,9 oz-in)		 0 - 9190 82 - 222
BN28 71,12 mm
(2,80 in)		 53,3 - 111,8 mm
(2,1 - 4,4 in)		 24/48/72 0,2189 - 0,6073 Nm
(31 - 86 oz-in)		 0 - 9240 210 - 306
BN34 86,36 mm
(3,40 in)		 35,6 - 73,7 mm
(1,40 - 2,90 in)		 24/50/100 0,4237 - 1,51 Nm
(60 - 214 oz-in)		 0 - 8130 334 - 690
BN42 105,41 mm
(4,15 in)		 58,4 - 134,6 mm
(2,3 - 5,3 in)		 24/50/100 0,7203 - 3,1847 Nm
(102 - 451 oz-in)		 0 - 6140 456 - 874
