907-FLEX
MODULAR MEDIA CONVERTER
/907FLEXMultiplexer_prod_banner_narrow.jpg)

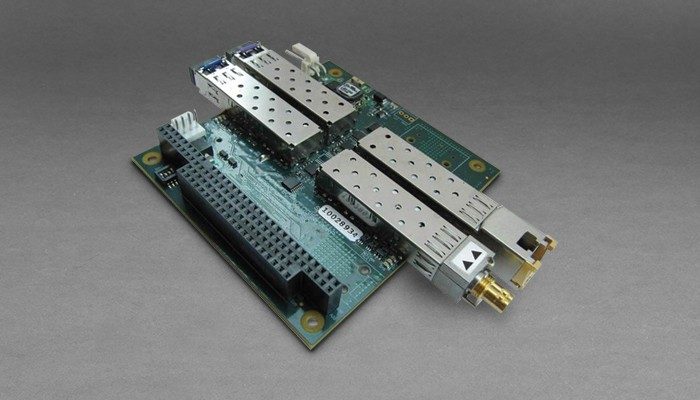

The 907-FLEX is a modular media converter capable of providing digital video, analog video, Ethernet or OEO (Optical-Electrical-Optical) conversion. Although many custom configurations are possible, the 907-FLEX is available in three standard offerings: HD4 - Quad HD Video, HDA - Dual HD Video and Dual Analog Video or HDE - Dual HD Video and Gigabit Ethernet. Customized OEO versions are available to boost optical signals, switch between fiber types or change wavelengths.
The 907-FLEX runs from a +5 VDC power supply, as normally required for the 907 product family, but is also available in a version for +12 VDC power.
Common transceiver options provide optical power budgets of 24 dB with up to 10 km of singlemode fiber. Coarse wave division multiplexer (CWDM) transceivers and optical cards are used to combine the 907-FLEX with multiple 907 media converters or other multiplexers. Also, the 907-FLEX supports mounting for a on-board CWDM module, creating a standalone single fiber solution.
Features
- Standard offerings for Quad (4) HD Video (HD4), Dual (2) HD Video and Dual (2) Analog Video (HDA) or Dual HD (2) Video and Gigabit Ethernet (HDE)
- HD Video complies with SMPTE-424M (3G-SDI), SMPTE-292M (HDSDI), SMPTE-259M (SDI)
- 10/100/1000 Mbps Ethernet, low latency
- NTSC composite analog video
- Interchangeable SFP optical transceivers
- Rugged design for harsh environments
- Compatible with 907-DIAG-E diagnostic card and Graphical User Interface (GUI) software
Benefits
- Reduces costs of systems using multiple digital video, multiple analog video and Ethernet
- Replaces multiple media converters
- Supports a wide range of optical options, including CWDM wavelengths
- Simplifies troubleshooting with advanced diagnostics
- Reduces space requirements
| 907-FLEX Specifications | |
|---|---|
| Quad HD Video No. of Channels |
4 |
| HD Format | 3G-SDI (SMPTE-424M), HD-SDI (SMPTE-292M), SD-SDI (SMPTE-259M) - 1080p/1080i/720p |
| Video Impedance | 75 Ohms input/output |
| Video Latency | < 1 μs (not including fiber, ~5 μs/km) |
| Optical Fiber | 4 x singlemode (9/125 μm) |
| Baud Rate | 2.97 Gbaud max. |
| Wavelength | 1471 - 1531 nm (standard) |
| Dual HD and Analog Video No. Channels |
2 x HD Video, 2 x Analog Video |
| HD Format | 3G-SDI (SMPTE-424M), HD-SDI (SMPTE-292M), SDI (SMPTE-259M) - 1080p/1080i/720p |
| Analog Format | NTSC |
| Video Impedance | 75 Ohms input/output, HD and analog |
| Video Latency | < 1 μs (not including fiber, ~5 μs/km) |
| Optical Fiber | 4 x singlemode (9/125 μm) |
| Baud Rate | 2.97 Gbaud max. |
| Wavelength | 1471 - 1531 nm (standard) |
| Dimensions | PC/104 (form-factor only) |
| Power Voltage | +5.0 VDC +/- 10%, regulated |
| Power Current | 1.0 A typical (1.5 A max.) |
| Protection | Overvoltage, undervoltage, reverse polarity, 3 A time-delay fuse |
| Dual HD Video and Gigabit Ethernet No. Channels |
2 x HD Video, 1 x Gigabit Ethernet |
| HD Format | 3G-SDI (SMPTE-424M), HD-SDI (SMPTE-292M), SDI (SMPTE-259M) |
| Video Impedance | 75 Ohms input/output, HD and analog |
| Video Latency | < 1 μs (not including fiber, ~5 μs/km) |
| Ethernet Data Rates | 10/100/1000 BASE-T(X) |
| Ethernet Latency | < 1 us (not including fiber, ~5 us/km) |
| Optical Fiber | 4 x singlemode (9/125 μm) |
| Baud Rate | 2.97 Gbaud max. (HD), 1.25 Gbaud (Ethernet) |
| Wavelength | 1471 - 1531 nm (standard) |
| Optical Budget | > 24 dB (26 dB typical) |
| Optical Connectors | LC (1 or 2 per SFP) |
| Video | HD-BNC (digital and analog) |
| Ethernet | RJ-45 |
| Power | 2-pin Molex, 0.156 inch spacing |
| Temperature | -10°C to +60°C (operational) -40°C to +85°C (storage) |
| Humidity | 85% RH, non-condensing |
| Vibration | 5 g, 25 - 1000 Hz, 3 axes |
| Shock | 30 g, 11 ms half sine, 3 axes |
Contact Us
Technical Support
Telephone: +1-902-468-2263
Typical Applications
- Remotely Operated Vehicles (ROVs)
- Armoured Vehicles
- Tethered Aerostats
- Video Security Systems
- OEO Converters
- Fiber-optic Repeaters
