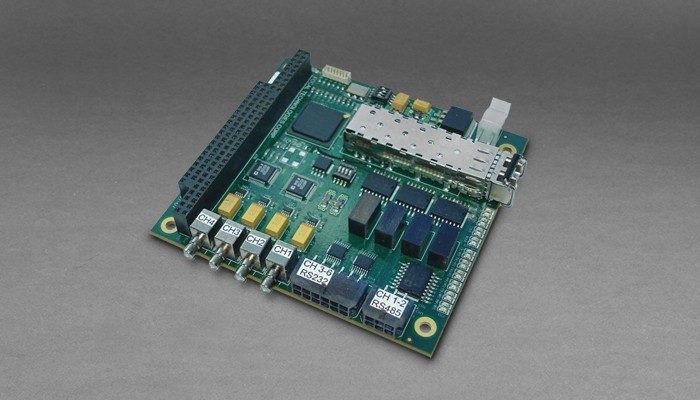

Model 907PLUS Multiplexer


The 907Plus is a multiplexer that extends the capabilities of standard 907 motherboards with an added video channel, galvanically isolated data channels, and a comprehensive, integrated diagnostics network. System expansion is even easier with a rapidly growing family of compatible expansion cards and media converters. A diagnostics add-on card is available that offers end-to-end performance monitoring and identification for multi-card systems via an Ethernet connection at the console, and Graphical User Interface (GUI) software.

Expansion cards may be stacked on the motherboard to add up to 48 data channels in a variety of formats, including RS-232, RS-485/422, TTL, Ethernet, CAN Bus, analog sonar, hydrophone, audio, and Tritech ARCNET. Depending on transceiver options, optical power budgets are typically 20-26 dB with 10 km or more of singlemode fiber.

Contact Our Experts


  • I2C bus supports diagnostic communications with expansion cards and media converters
  • Galvanically isolated data serial data channels
  • Compatible with 907-DIAG-E diagnostic card and Graphical User Interface (GUI) software
  • On-board diagnostic LEDs for power, optical link, and video sync, and serial data Tx/Rx
  • Interchangeable SFP optical transceiver
  • Supports up to six 907 expansion cards


  • Isolated data channels provide more robust interface to external equipment
  • Supports a wide range of optical options, including CWDM wavelengths and multimode configurations
  • No motherboard data channels are disabled when expansion cards are added
  • Simplifies troubleshooting with advanced diagnostics

Typical Applications

  • Remotely Operated Vehicles (ROVs)
  • Pipe inspection robots
  • Bomb disposal robots
  • Video security systems
  • Tether management systems
  • Tactical networks
  • Aerostat balloons


907Plus Specifications
No. Channels 4
Format NTSC/PAL, RGB, Y/C (S-Video), YPrPb
Digitization 10-bit
Bandwidth 6.0 MHz
SNR > 56 dB (60 dB typical)
Impedance 75 Ohms
RS-232 4 isolated channels (120 kbps NRZ)
RS-485/422 2 isolated RS-485, or 1 isolated RS-422 (2.5 Mbps NRZ)
Fiber Type 1 or 2 singlemode (9/125 µm)
Format AME-EP (Moog proprietary)
Baud Rate 1.25 Gbaud
Wavelength 1310/1550 nm standard
(CWDM optional, 1471 - 1611 nm)
Flux Budget > 20 dB (26 dB typical)
LEDs Power (electrical), optical link, optical fault, serial Tx/Rx, video sync
Ethernet to PC Diagnostics from remote and console through 907-DIAG-E card at console
Power Voltage +5.0 VDC ±10%, regulated
Power Current 0.7 A typical (1 A max.)
Power Used 3.5 W typical (5 W max.)
Protection Overvoltage, reverse polarity, 2 A time delay fuse
Dimensions PC/104 (form-factor only)
Weight < 120 g (0.25 lb)
Optical Dual LC (SFP)
Video 4 x SMB
Data RS-232: 1 x 12-pin Molex (Micro-Fit Series)
RS-485/422: 1 x 6-pin Molex (Micro-Fit Series)
Power 2-pin Molex, 0.156 inch pin spacing
Stacking PC/104 (for stacking 907 cards only)
Temperature -10°C to +60°C (operational)
-40°C to +85°C (storage)
Humidity 85% RH, non-condensing
Vibration 5 g, 25-1000 Hz, 3 axes
Shock 30 g, 11 ms half sine, 3 axes
