Cryogenic Ball Valves

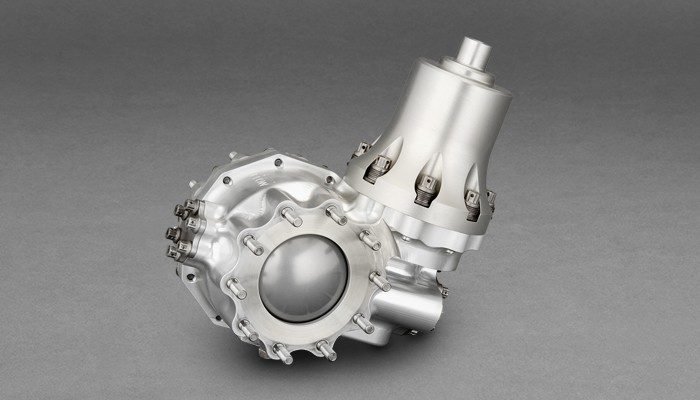

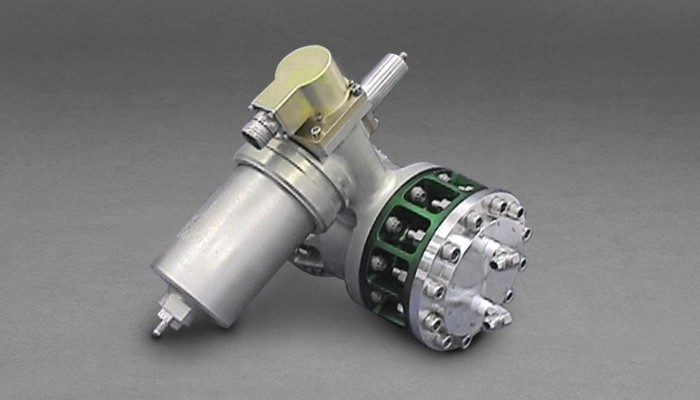

Moog produces a variety of fluid control components used in space launch vehicles as part of their cryogenic fluid control systems. These components manage both cryogenic hydrogen and oxygen, including propellant isolation valves for rocket engine propellant feed systems and venting valves for propellant tank ullage pressure management. These valves are pneumatically-operated, using nitrogen or helium to provide actuation pressure. They are ball valves, which provide the lowest pressure drop across the valve for their flow rate capability.

CONTACT OUR EXPERTS >

Jump To:

Features

Literature

Flow and Pressure Capabilities Include

Pressures up to 300 psig MEOP
Mass flow rates up to 148 lbm/sec LOx and 22 lbm/sec LH₂

101-88-1-Cryogenic-Ball-Valves-grey-bckgrd-700x400.psd

101-89-1-Cryogenic Ball Valves-grey-bckgrd-700x400.psd

101-90-1-Cryogenic Ball Valves-grey-bckgrd-700x400.psd

Valve	Model 50-799 3” LOx Isolation Valve	Model 50-800 2” LH₂ Isolation Valve	Model 50-900 (LOx) & 50-910 (LH₂) 3” LOx/LH₂ Isolation Valve
Media	Liquid Oxygen	Liquid Hydrogen	Liquid Hydrogen / Liquid Oxygen
Unit Mass	7.8 lbm	6.6 lbm	12 lbm
Dimensions (L W H)	8.0” x 4.5” x 9.0”	6.7” x 4.0” x 8.5"	11.5” x 6.5” x 11.7”
MEOP	100 psig	40 psig	280 psig
Actuation Pressure	475 psig	500 psig	715 psig
Factors of Safety	Proof: 1.5x MEOP; Burst: 2.5x MEOP	Proof: 1.5x MEOP; Burst: 2.5x MEOP	Proof: 1.5x MEOP; Burst: 2.5x MEOP
C_v	1590	880	320
Max Flowrate at ∆P	80 lbm/sec LO2 @ 0.1 psid	45 lbm/sec LH2 @ 0.1 psid	148 lbm/sec LO2 @ < 12 psid 22 lbm/sec LH2 @ < 5 psid
Internal Leakage	5 SCIM GHe @ 35 psi at ambient temp.	<31 SCIM GHe @ 50 psi during LN₂ immersion	5 SCIM GHe @ 35 psi during LN₂ immersion
External Leakage	0 bubbles GHe @ 270 psi at ambient temp.	0 bubbles GHe @ 50 psi during LN₂ immersion	0 bubbles GHe @ 55 psi during LN₂ immersion
Response Time	Open: < 100 msec; Close: < 200 msec	Open: < 100 msec; Close: < 200 msec	Open: < 100 msec; Close: < 200 msec
Operating Temperature	-320°F – 160°F	-423°F – 160°F	-423°F – 100°F
Random Vibration	20 Grms	30 Grms	36 Grms
Shock	2000 G	2000 G	1500 G
Cycle Life	50 cycles	50 cycles	1000 cycles
Wetted Materials	Aluminum, CRES, PTFE	Aluminum, CRES, PTFE	Aluminum, CRES, PTFE
Position Indication	N/A	N/A	Redundant microswitches
