Media Converters
Moog designs and manufactures small, lightweight and rugged Fast, Gigabit and 10 Gigabit Ethernet media converters for use in most rugged environments, e.g. military, avionics and other extreme industrial applications. Moog has designed video media converters to easily extend the link length of typical video signals in rugged applications, such as military, avionics and other rugged industrial applications. Currently supported protocols are ARINC 818, DVI, SMPTE 424 (3 G-SDI), RS-170 and base mode camera link, but other protocols are in design.
Ethernet Media Converters
Excalibur 10 Gigabit Ethernet Transponders
Excalibur series Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated into a bulkhead mounted MIL-DTL-38999, series III receptacle connector along with the 10 Gbps / XAUI SerDes functions.

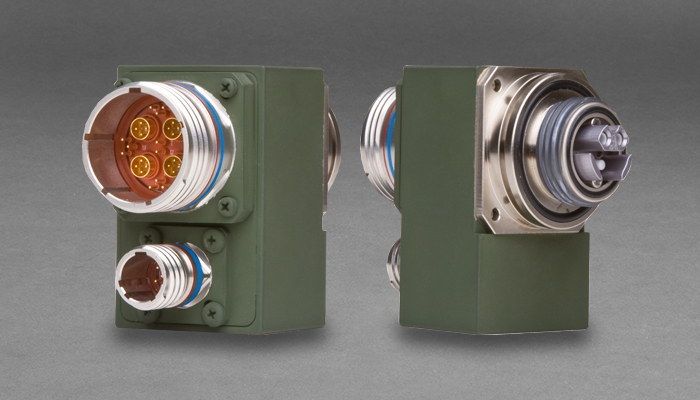

Maverick TFOCA-II® Ethernet Media Converters
Maverick series TFOCA-II® Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T Ethernet electrical to 1000Base-SX Ethernet optical media conversion circuitry into an environmentally sealed unit.
Mercury 28 VDC Ethernet Media Converters
Mercury series Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T electrical to 1000Base-SX optical media conversion circuitry into an externally mounted MIL-DTL-38999 connector assembly.

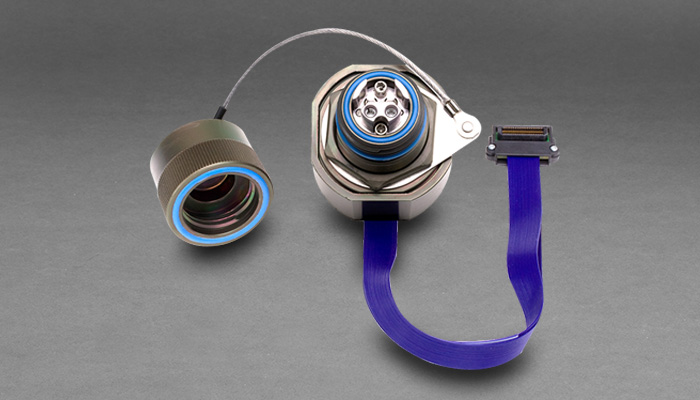

Mustang TFOCA-II® Optical Media Converters
Mustang series TFOCA-II® Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T Ethernet electrical to 1000Base-SX Ethernet optical media conversion circuitry into an environmentally sealed unit with a Jam Nut TFOCA-II® optical connector interface.
Neptune M28876 Ethernet Media Converters
Neptune series Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T Ethernet electrical to 1000Base-LX or 1000Base-SX Ethernet optical media conversion circuitry into an environmentally sealed unit.

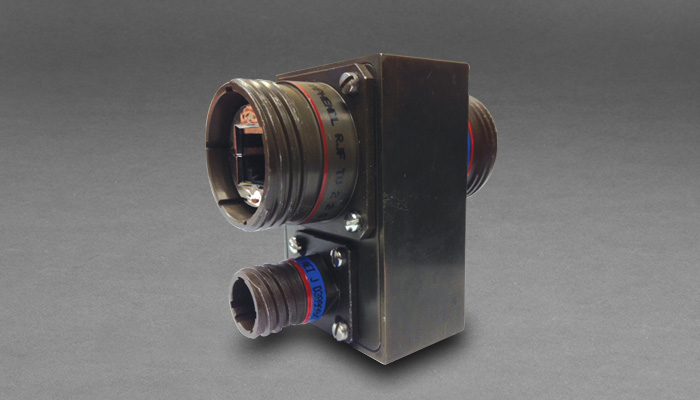

Saturn Fiber Optic Ethernet Media Converters
Saturn series Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T Ethernet electrical to 1000Base-LX or 1000Base-SX Ethernet optical media conversion circuitry into an environmentally sealed unit.
Spitfire 3.3 VDC Ethernet Optical Media Converters
Spitfire series Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to 100Base-FX or 1000Base-T electrical to 1000Base-SX optical media conversion circuitry into a bulkhead mounted MIL-DTL-38999 connector assembly.

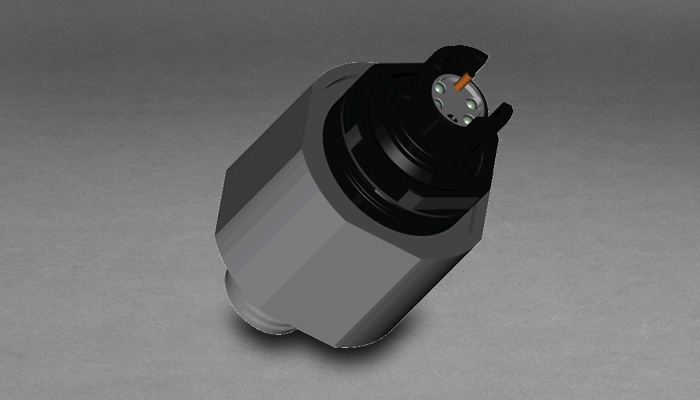

Stingray Optical Media Converters
Stingray series Ethernet media converters consist of optoelectronic transmitter and receiver functions integrated along with the 10/100Base-TX to100Base-FX or 1000Base-T Ethernet electrical to 1000Base-LX or 1000Base-SX Ethernet optical media conversion circuitry into an environmentally sealed unit with a Jam Nut M83526 / 21-02 expanded beam optical connector interface.
Video Media Converters
Falcon DVI Fiber Optic Media Converters
Falcon series video media converters dual DVI fiber optic transmitters or receivers consist of optoelectronic transmitter or receiver functions integrated into a bulkhead mounted MIL-DTL-38999 connector assembly.

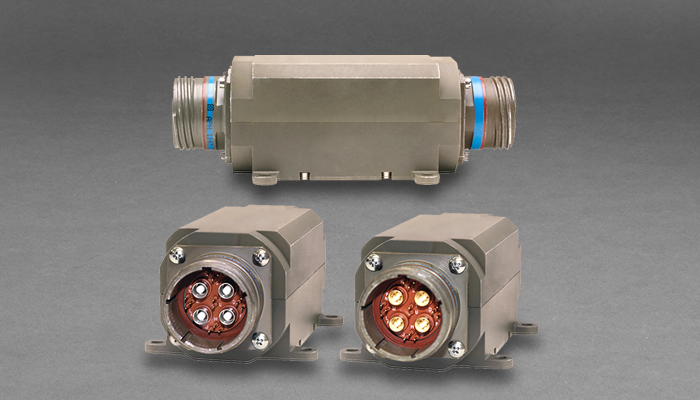

Kestrel 4xSMPTE 424M / DVI Media Converters
Kestrel series 4xSMPTE 424M (3G-SDI) or 1xDVI video media converters consist of optoelectronic conversion functions integrated into a wall or floor mounted MIL-DTL-38999 connector assembly.
Spyder Gimbal Signal Converters
The Spyder series hardware systems aggregate many different high-speed signals over a single fiber optic link for effective remoting of sensor assets.
Interface Adapters
Cobra Active Optoelectronic Cable Adapters
Cobra series active optoelectronic cable assemblies consist of optoelectronic transmitter and receiver functions integrated into an environmentally sealed unit with a D38999 / 26xB35PN electrical connector interface.

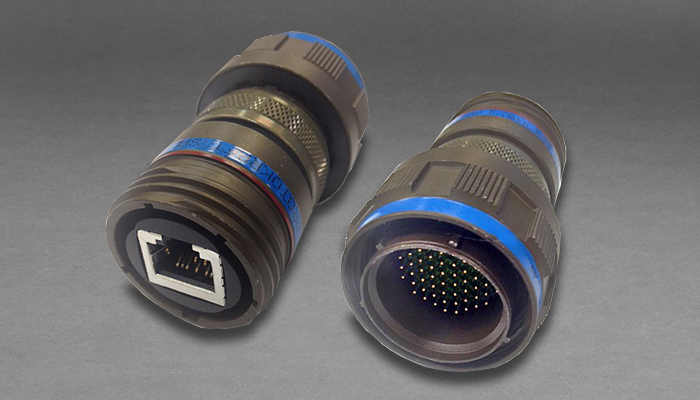

Gemini Media Interface Adapter
Gemini series media interface adapters consist of optoelectronic transmitter and receiver functions integrated into a bulkhead mounted MIL-DTL-38999, series III receptacle connector assembly.
Proteus Media Interface Adapter
Proteus series media interface adapters consist of optoelectronic transmitter and receiver functions integrated into an external bulkhead mounted MIL-DTL-38999, series III receptacle connector assembly.
