AC6023

COMPACT SLIP RING IN VARIOUS CIRCUIT CONFIGURATIONS



Operating Speed 250 rpm*
Number of Circuits 6, 12, 18, or 24
Lead Lengths 12, 24, 36, and 48 inches
Lead Size / Type 28 (7 / 36) silver plated copper, type ET Teflon®
Voltage 240 VAC
Temperature Range -40°C to +80°C
Contact Material Gold
Current Rating 2 amps / ckt
Electrical Noise 60 milliohms max.

*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

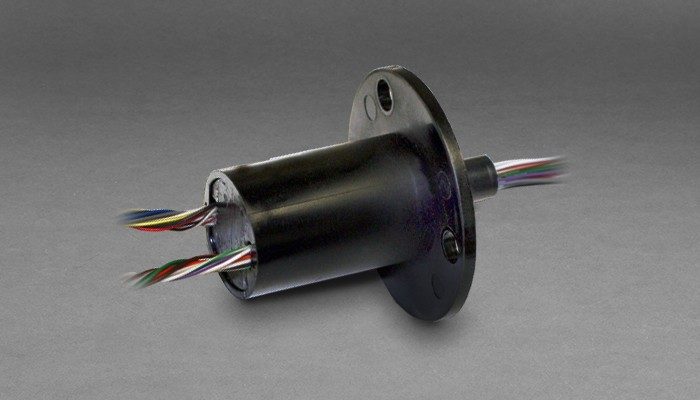

The AC6023 compact slip ring capsule is a standard, off-the-shelf unit that uses gold contacts at the rotary interface.  Color-coded lead wires are used on both the stator and rotor for simplified electrical connections. It is available in 6, 12, 18 and 24 circuit models.

Aside from the standard configurations, we have a wide variety of special designs, which have been customized to meet the particular needs of an individual application.

Features

  • 6, 12, 18 and 24 circuit models
  • 2 amp / 240 VAC circuits
  • Precision ball bearings meet or exceed life requirements
  • for most commercial applications
  • Speeds up to 250 rpm
  • Compact size:  0.57 inch to 1.38 inch lengths (depending upon number of circuits)
  • Gold
  • 12 inch, 24 inch, 36 inch, 48 inch standard lead lengths
  • Compatible with data bus protocols
  • Sealed units are also available (dust and light splash only)
  • Flexible, color-coded, silver-plated, Teflon® insulated lead wires
  • Transfers analog and digital signals
  • Also available with 5 and 10 amp power rings combined with 2 amp rings. Please refer to AC6305 / AC6310 data sheet.

Benefits

  • Smooth running
  • Low torque
  • Compact
  • Quick shipment

Options

  • Splash seals for dust and moisture resistance
  • No flange
  • Aluminum housing

Typical Applications

  • CCTV pan / tilt camera mounts
  • Electrical test equipment
  • Manufacturing and process control equipment
  • Indexing tables
  • Robotics (end-effectors, arms, vision systems, sensors)
  • Exhibit / display equipment
  • Medical equipment
