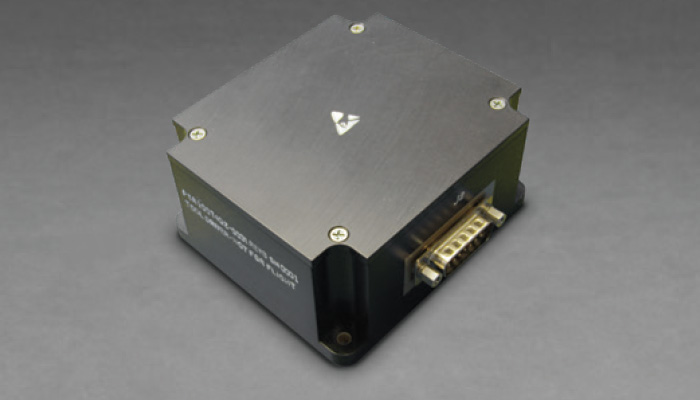

Small Satellite Solar Array Drive Electronics (SADE)
The small satellite Solar Array Drive Electronics (SADE) controller is compact solution for interfacing with our small satellite Solar Array Drive Assembly (SADA). The SADE consists of a serial RS-422 interface to receive commands and send telemetry to the spacecraft host. The SADE is a motor driver capable of controlling current and speed of the motor via commands provided by the spacecraft host. The SADE is comprised of space rated radiation tolerant components capable of operating in a LEO environment.
Key Features:
- LEO orbit capable/radiation tolerant
- RS-422 serial interface for spacecraft communications
- Stepper motor current and speed control
- Onboard temperature sensor
- Compact driver design
Specifications
| Features | Units |
| Unit Weight | 1.76 lbm [0.8 kg] max. |
| Dimensions (L W H) | 3.5” [88.9 mm] x 4.0“ [101.6 mm] x 1.9” [48.3 mm] |
| Operating Voltage | 22 to 34 VDC |
| Standby Current Draw | 0.1 A max |
| Standby Power | 3.4 W Max |
| Command Interface | RS-422 Serial |
| Telemetry Outputs | Six pass-through circuits; Onboard temperature sensor |
| Motor Type Compatability | 2-phase stepper motor drive ( 3-phase motor drive coming in 2026) |
| Vibration Grms | 11.6 Grms |
| Shock Peak G’s | 650 G |
| Operating Temperature | -30°C to 66°F |
| Total Inonizing Dose (TID) Level | 50 krad |
| Single Event Latchup (SEL) LET Threshold | 61 MeV-cm2 /mg |
| Input Connector Type | 15-Socket SDD D-Sub Connector |
| Output Connector Type | 15-Pin SDD D-Sub Connector |
