Bell 412 Huey Avionics Platform
Increase Mission Capabilities

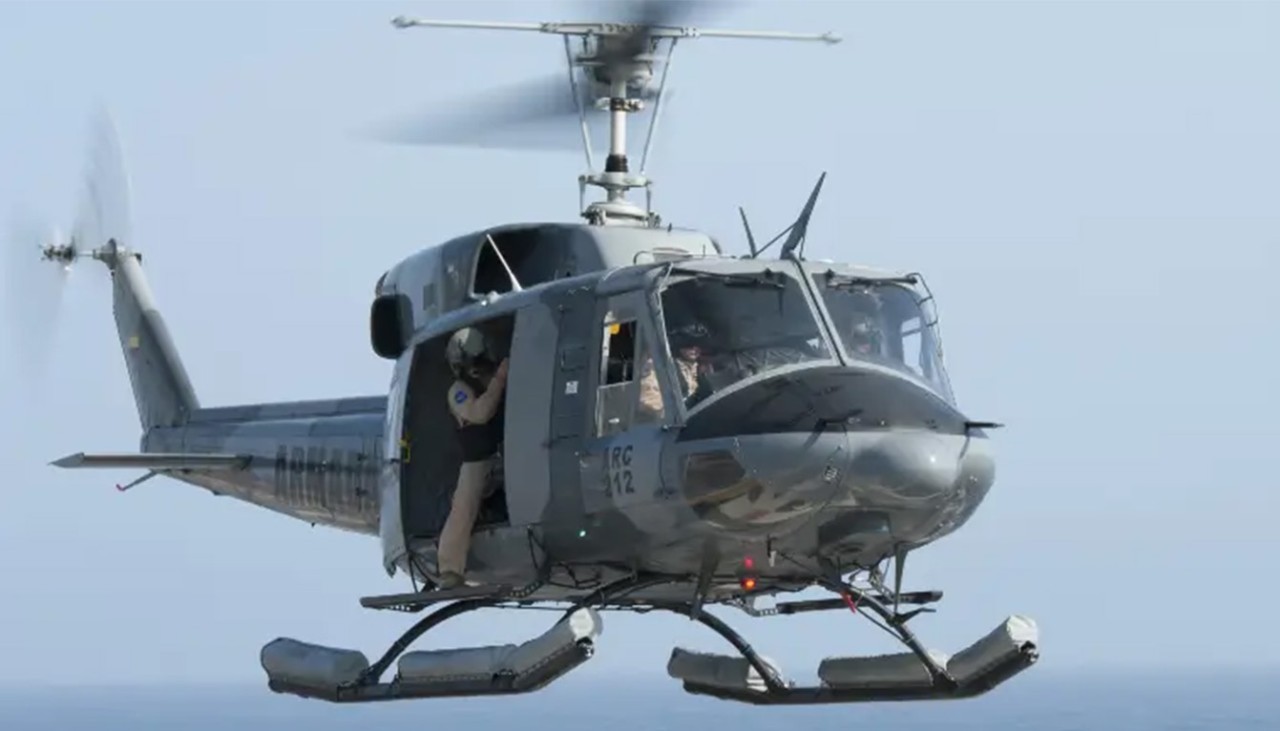

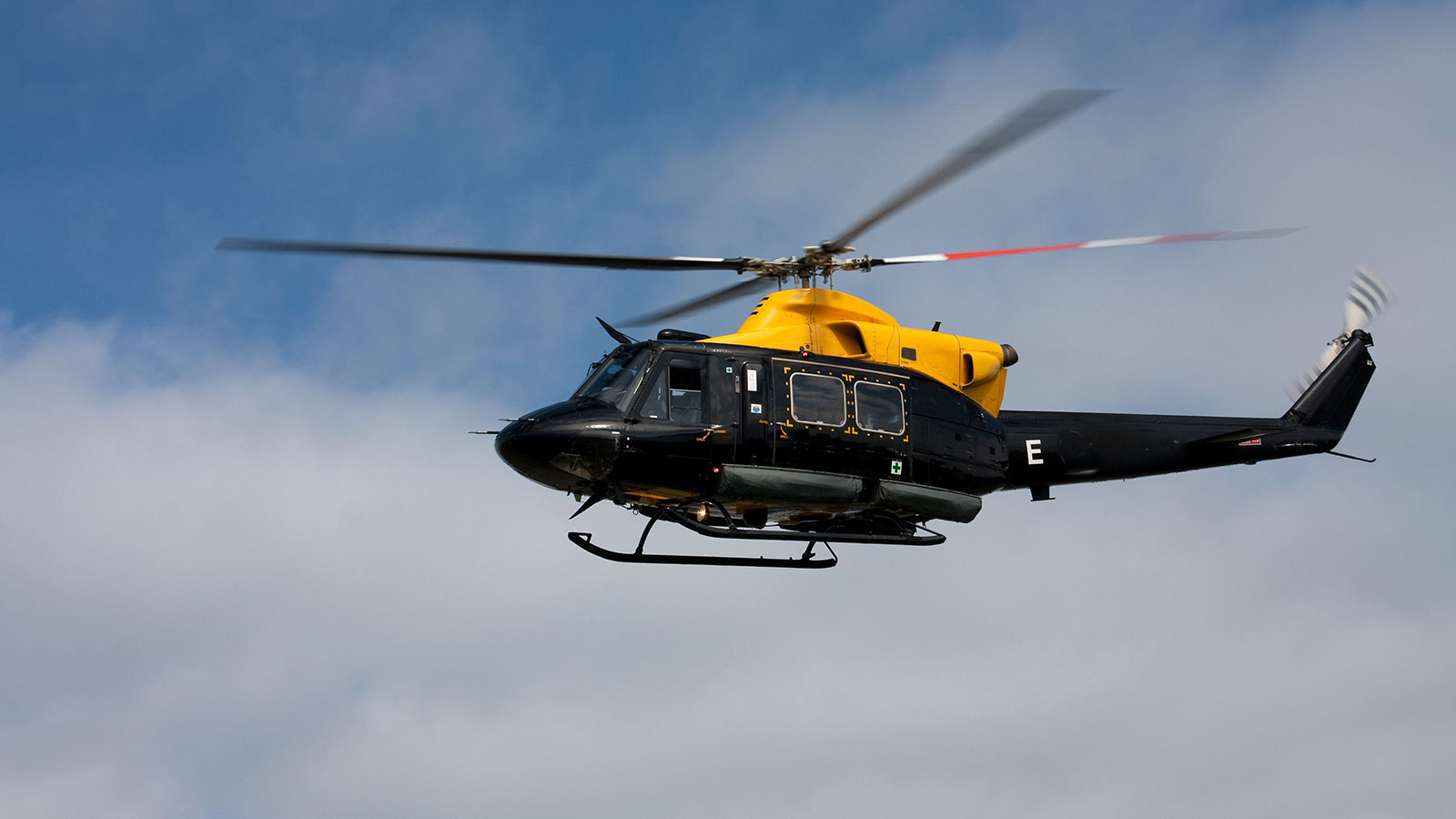

Moog offers an avionics modernization program to provide the Bell 412EP and 412HP Huey rotorcraft with state-of-the-art digital avionics for primary flight, navigation, engine/systems displays, solid-state sensors, and integrated SBAS GPS navigation. The Genesys Avionics Suite™ is a complete flight and navigation system designed to seamlessly integrate into the aircraft’s existing systems. The screen displays include three-dimensional, enhanced situational awareness Primary Flight Information and Multi-Function displays. Multi-Function display can be configured to show a moving map, an HSI, traffic, terrain, hover vector, weather, radio/audio control, video input, or engine displays.

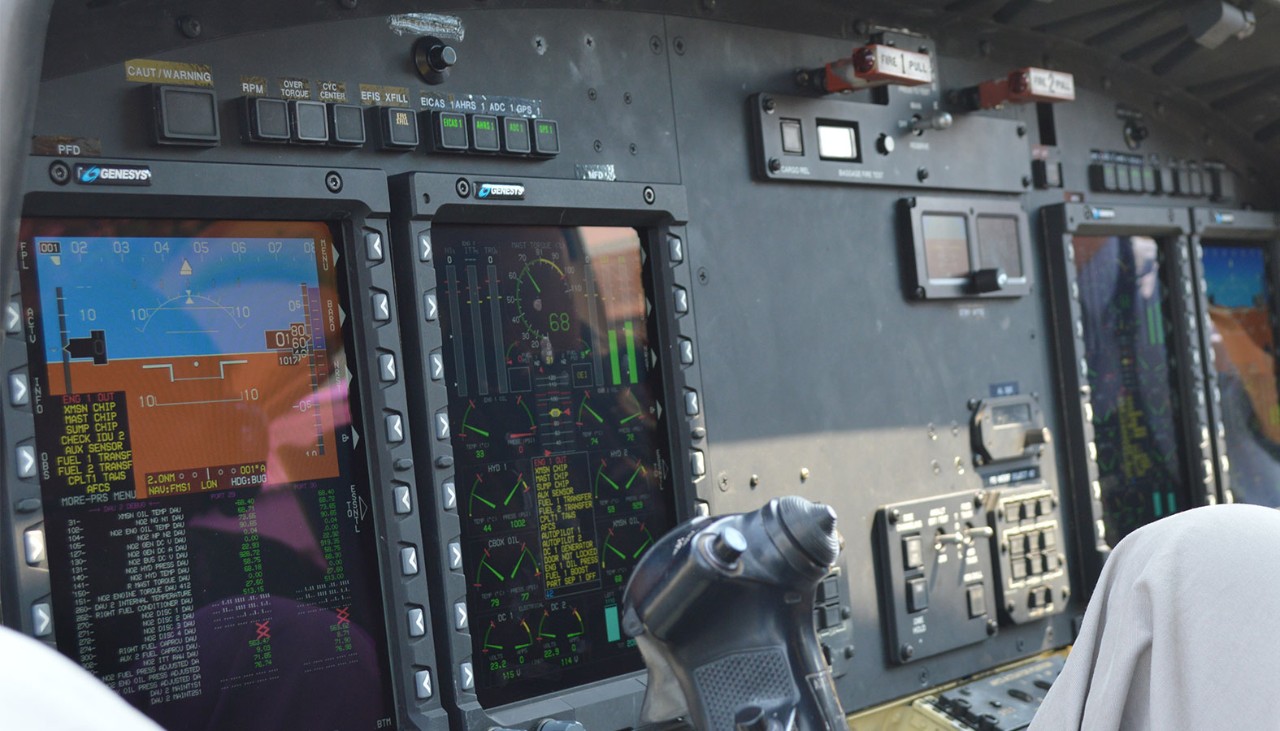

Complete Integrated Cockpit Solution
Modernizing the Bell 412 Huey platform.
The Genesys Avionics Suite
The Genesys Avionics Suite™ provides renewed operational life and increased mission effectiveness through a complete and comprehensive cockpit system upgrade customized to the unique operational needs of existing Bell 412EP and 412HP Huey aircraft.
Features of the Bell 412 avionics suite include:
- PFD and MFD EFIS digital cockpit display suite
- Synthetic Vision and Highway-In-The-Sky navigation symbology
- Hover Vector
- Enhanced HTAWS Terrain Warning & Alerting
- Full EICAS display capability
- Integrated FMS
- MIL-STD qualified
- NVG compatible
- IFR Approved

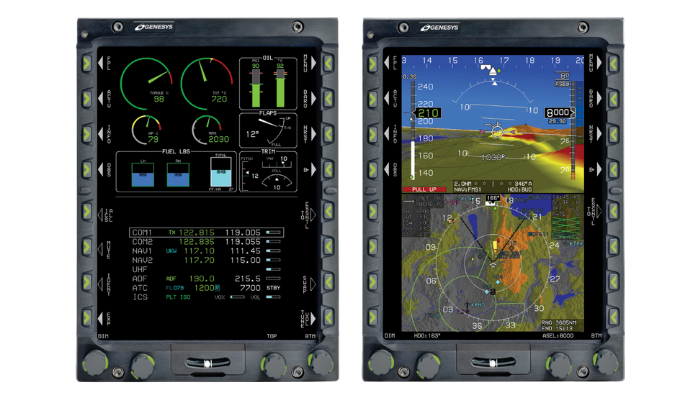

Glass EFIS: IDU-680 Displays
The Level A certified IDU-680 EFIS utilizes ADAHRS and GPS SBAS data for precision aircraft operation including RNP and LPV approaches, and patented OASIS (Open Architecture System Integration Symbology) to display engine information and CAS messages. The system also integrates with select radios and weather radar and offers expansion ports supporting a path for future growth. The STC meets all IFR regulations, increasing the mission capabilities, dispatch ability, and usefulness of the aircraft.
Features include:
- Redundant ADAHRS attitude source (replaces legacy attitude sensors)
- Redundant GPS/SBAS receivers
- Dual NAV/COMM radios
- Integrated radio/audio management
- Mode S ADS-B compliant transponder
- Weather radar control and display
- Built-in support/interfaces for FLIR, Satcom, DF, HF, UHF, TACAN, Datalink, SELCAL, tactical radios, etc.

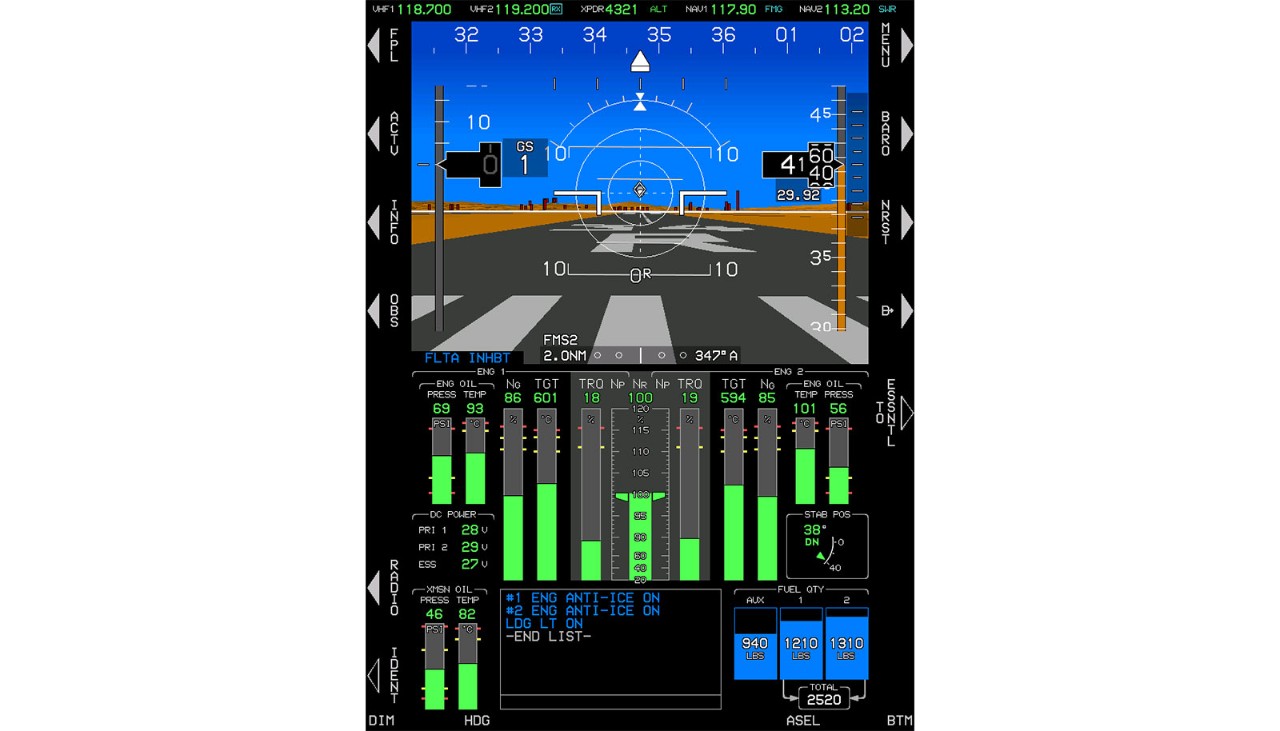

EICAS
Provides customizable full engine indication and crew alerting system, replacing outdated gauges and annunciators. Features include:
- Color graphical presentation, reducing cockpit workload
- Enhances safety
- Warning and Caution messages are tailored to eliminate incorrect interpretation
- Exceedence log recording.

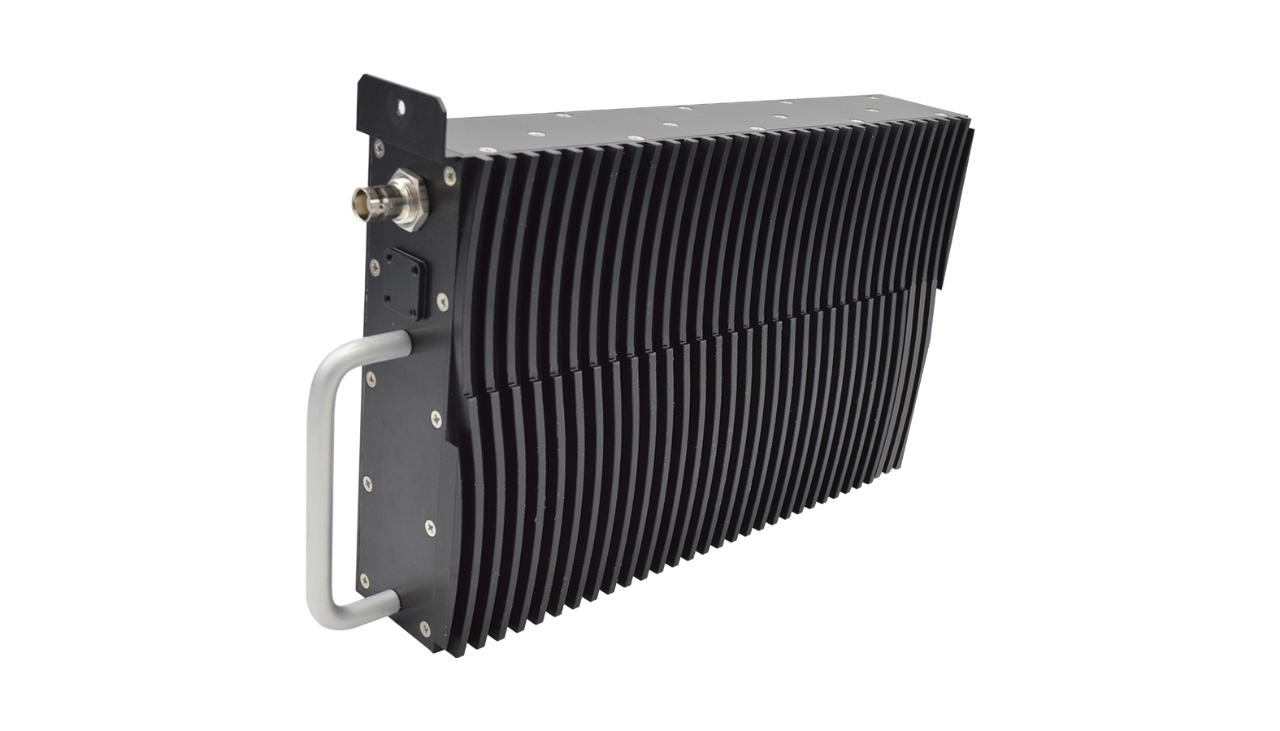

NAV/COMM Radio - GDR
The Genesys Digital Radio (GDR™) is a family of remote-mount, software definable radios combining VOR/localizer/glideslope and marker beacon navigation and VHF communication with a UHF communication option in a single box. GDR lowers weight, increases reliability, reduces cost, and increases mission readiness.
