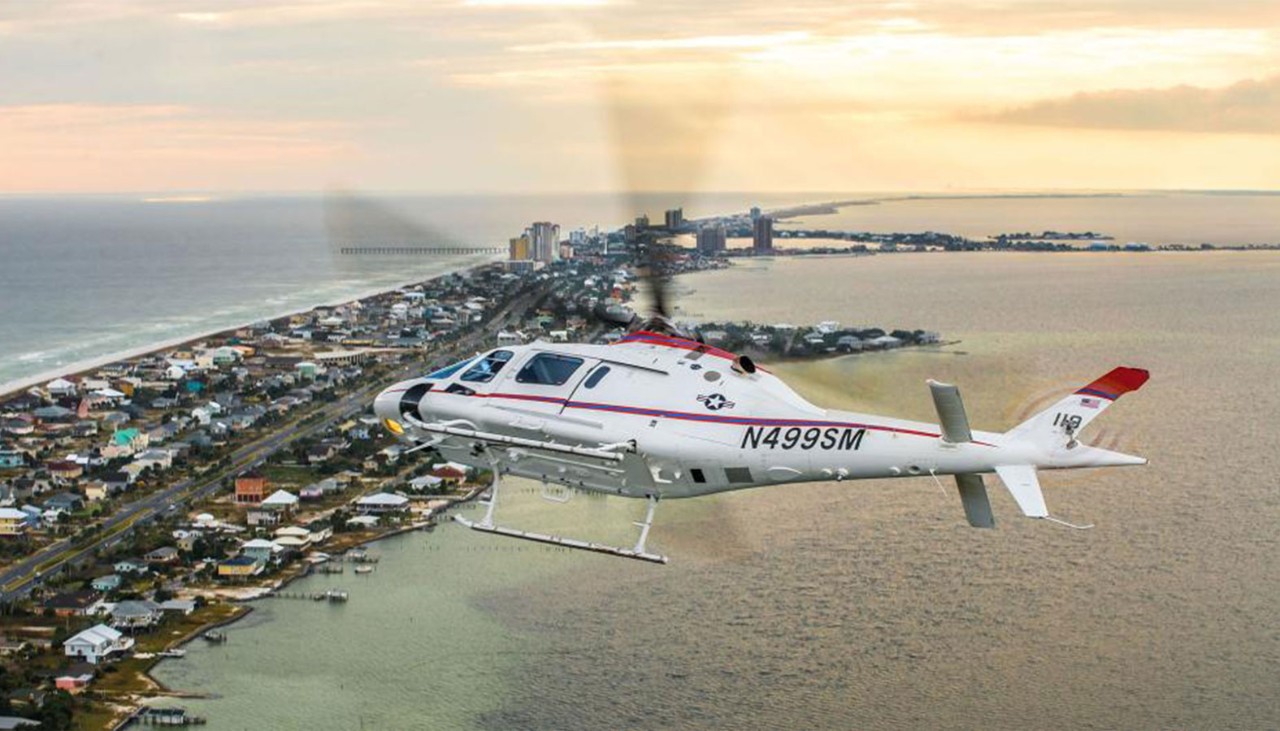

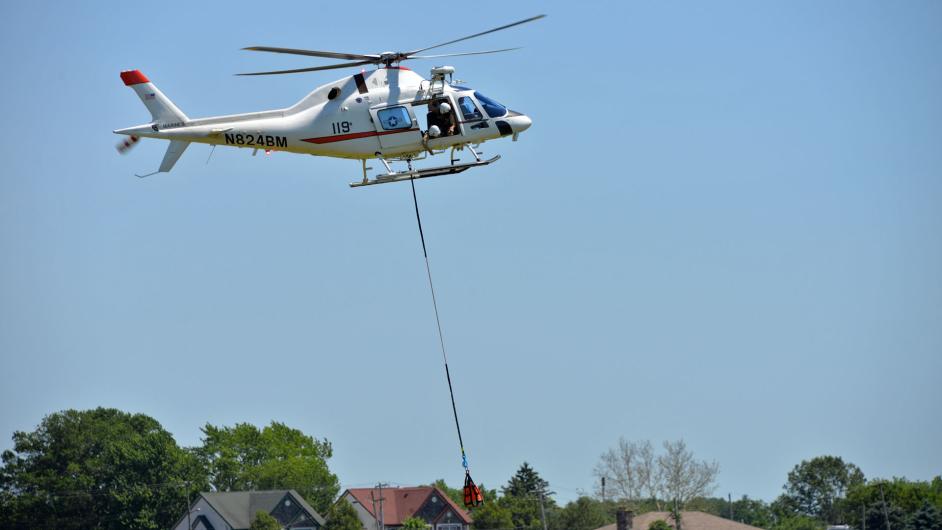

Leonardo TH-119 Avionics Platform
Revolutionary Rotorcraft IFR Capabilities
In partnership with Leonardo Helicopters, Moog has equipped its complete modernized avionics suite on the TH-119, a single-engine rotorcraft, and the first to meet IFR certifications in decades. The Leonardo TH-119, complete with the Genesys Avionics SuiteTM, features increased aircraft capabilities while keeping costs to a minimum. Meanwhile, the IFR certification allows pilots to fly safely in low-visibility and challenging weather conditions.
Training The Next Generation of Pilots
Modernizing the Leonardo TH-119 platform.

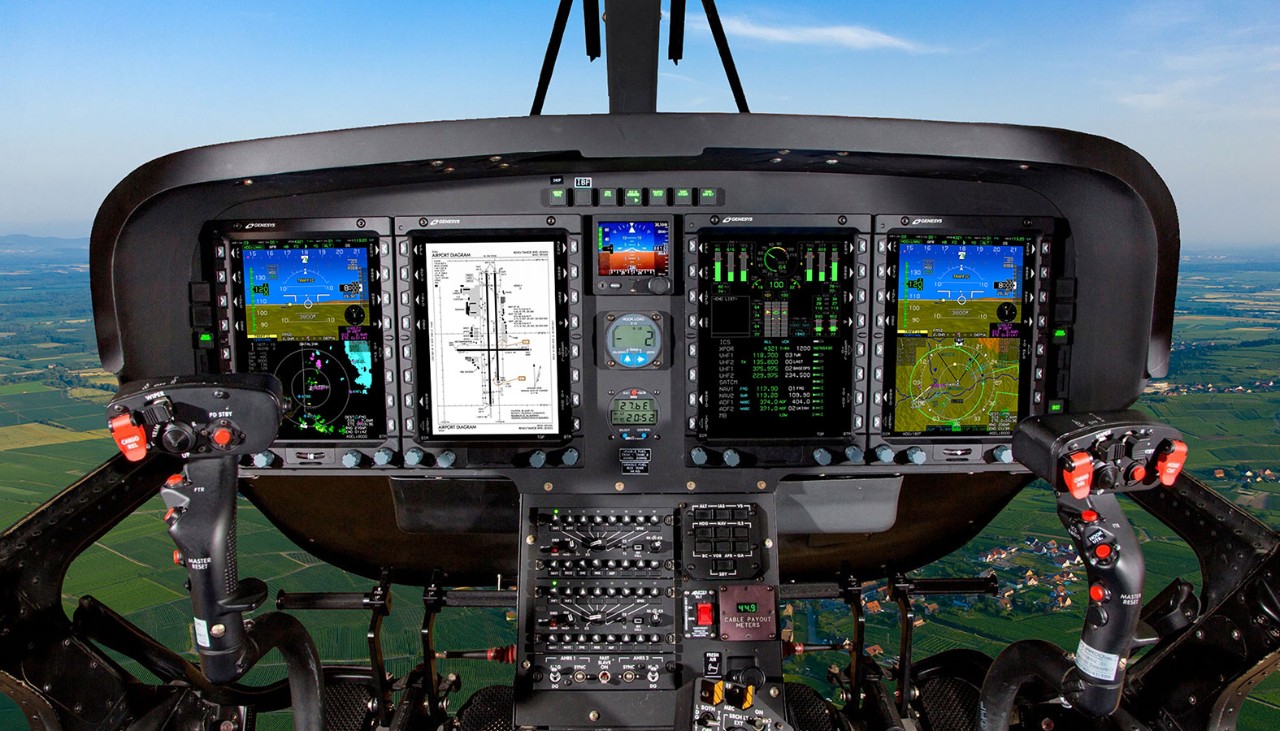

The Genesys Avionics Suite
The Genesys Avionics Suite provides single-engine IFR capability to increase mission effectiveness at a lower operating cost through a comprehensive cockpit system customized to the unique operational needs of the TH-119A aircraft.
Features of the TH-119 Avionics Suite include:
- PFD and MFD EFIS digital cockpit display suite
- Synthetic Vision and Highway-In-The-Sky flight navigation symbology
- Hover Vector
- Enhanced HTAWS Terrain Warning & Alerting
- Full EICAS display capacity
- Integrated Genesys GDR digital Nav/Comm radio package
- Integrated FMS
- MIL-STD qualified
- NVG compatible
- IFR Approved

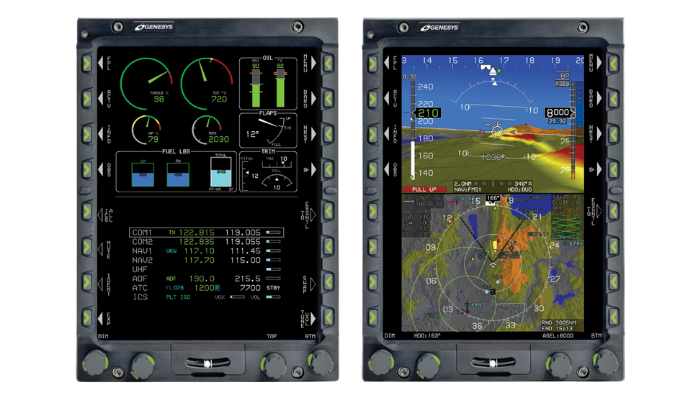

Glass EFIS: IDU-680 Displays
Moog's lightest, most comprehensive, integrated Electronic Flight Instrument System enhances safety, reduces pilot workload, and increases mission flexibilty. Features include:
- Redundant ADAHRS attitude source (replaces legacy attitude sensors)
- Redundant GPS/SBAS receivers
- Dual NAV/COMM radios
- Integrated radio/audio management
- Mode S ADS-B compliant transponder
- Weather radar control and display
- Built-in support/interfaces for FLIR, Satcom, DF, HF, UHF, TACAN, Datalink, SELCAL, tactical radios, etc.

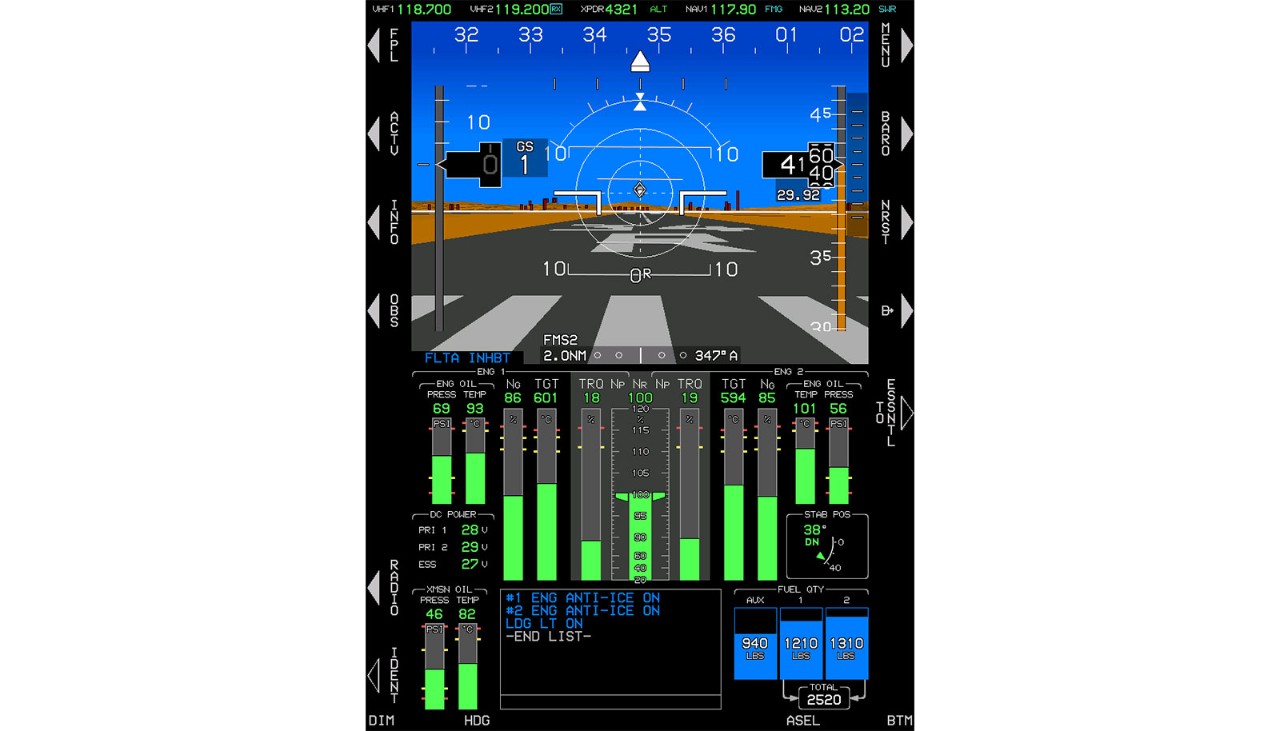

EICAS
Provides customizable full engine indication and crew alerting system, replacing outdated gauges and annunciators. Features include:
- Color graphical presentation, reducing cockpit workload
- Enhances safety
- Warning and Caution messages are tailored to eliminate incorrect interpretation
- Exceedence log recording.

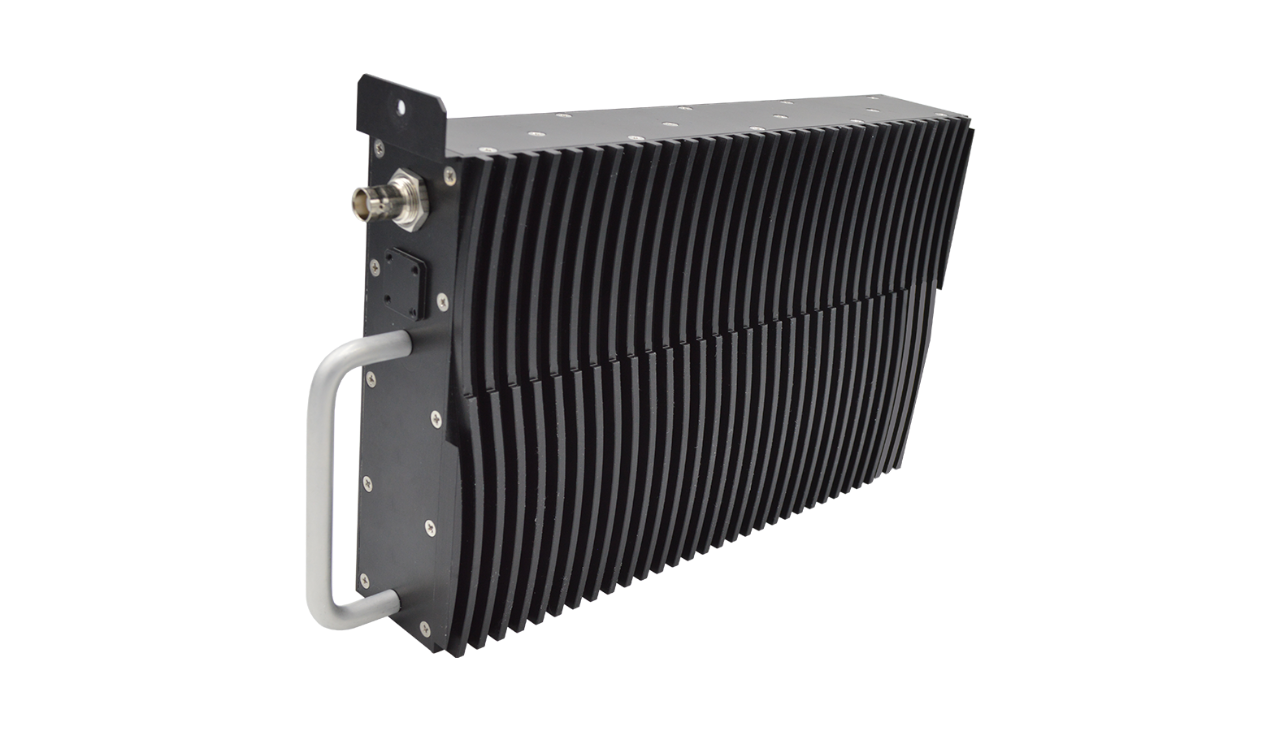

NAV/COMM Radio - GDR
The Genesys Digital Radio (GDR™) is a family of remote-mount, software definable radios combining VOR/localizer/glideslope and marker beacon navigation and VHF communication with a UHF communication option in a single box. GDR lowers weight, increases reliability, reduces cost, and increases mission readiness.
Downloads
Click the file icons below to view the literature in a separate tab.
*The appearance of U.S. Department of Defense (DoD) visual information does not imply or constitute DoD endorsement.
