Pilatus PC-7 Avionics Platform
Modernizing PC-7 Trainer Glass Cockpits
Moog's Genesys Avionics Suite provides the latest state-of-the-art avionics package allowing seamless transition from training aircraft to fleet aircraft. The Pilatus PC-7 Turbo Trainer is a low-wing tandem-seat training aircraft. The aircraft is capable of all basic training functions, including aerobatics, instrument, tactical, and night flying. It has developed a sizable presence of the global trainer market and has been adopted by in excess of twenty air forces as their ab initio trainer, as well as multiple civilian operators. Moog's customizable avionics suite brings modern, glass-cockpit functionality to the PC-7 fleet.
The PC-7 avionics package also has direct applicability to the Pilatus PC-9 and Beechcraft T-6A Texan II trainer aircraft utilizing Moog's PC-7 Approved Model LIst (AML) Supplemental Type Certificate (STC) with only completion of company ground and flight tests without additional involvement from the FAA.
Complete Pilot Training Cockpit Solution

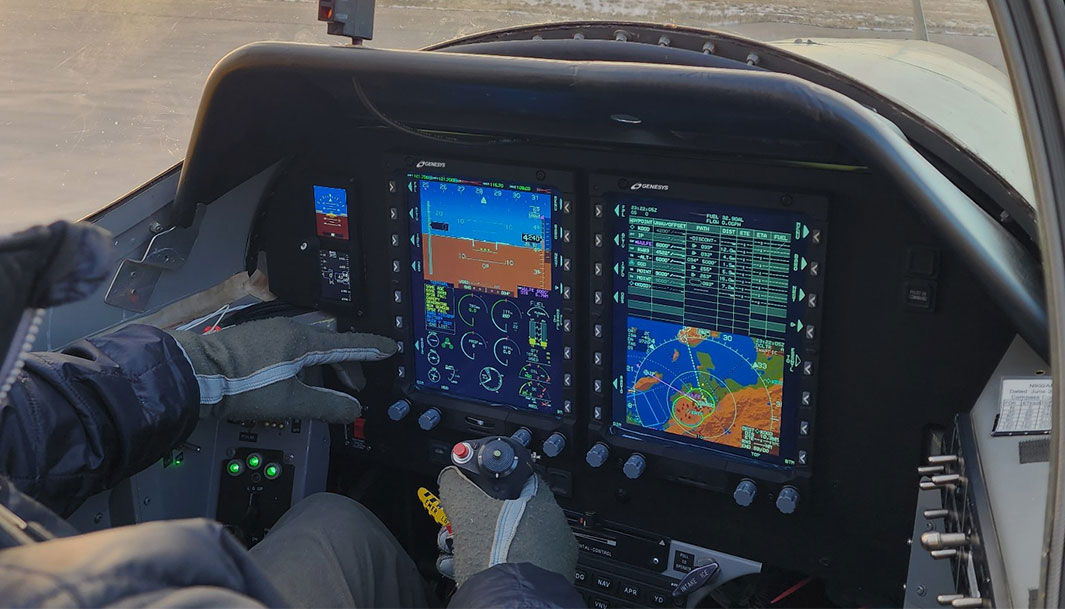

Flight Deck Modernization for Pilatus PC-7 Trainer Aircraft.
The Genesys Avionics Suite
The Genesys Avionics Suite provides a future-forward technology architecture with future-proof upgradeability. This allows the aircraft to be upgraded as new features and technologies are fielded in the future to keep training fleets modernized and mission effective.
Features of the PC-7 avionics suite include:
- PFD and MFD EFIS digital cockpit display suite
- Synthetic Vision and Highway-In-The-Sky flight navigation symbology
- TAWS Terrain Warning & Alerting
- Full EICAS display capability
- Integrated Genesys GDR digital Nav/Comm radio package
- Mil-Std qualified
- NVG compatible

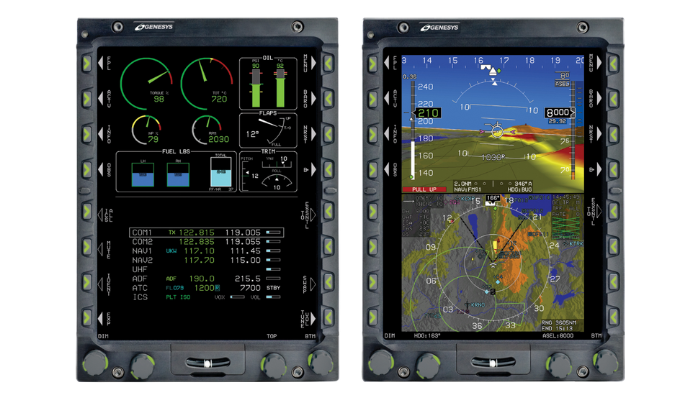

Glass EFIS: IDU-680 Displays
Moog's lightest, most comprehensive, integrated Electronic Flight Instrument System enhances safety, reduces pilot workload, and increases mission flexibilty. Features include:
- Redundant ADAHRS attitude source (replaces legacy attitude sensors)
- Redundant GPS/SBAS receivers
- Dual NAV/COMM radios
- Integrated radio/audio management
- Mode S ADS-B compliant transponder
- Weather radar control and display
- Built-in support/interfaces for FLIR, Satcom, DF, HF, UHF, TACAN, Datalink, SELCAL, tactical radios, etc.

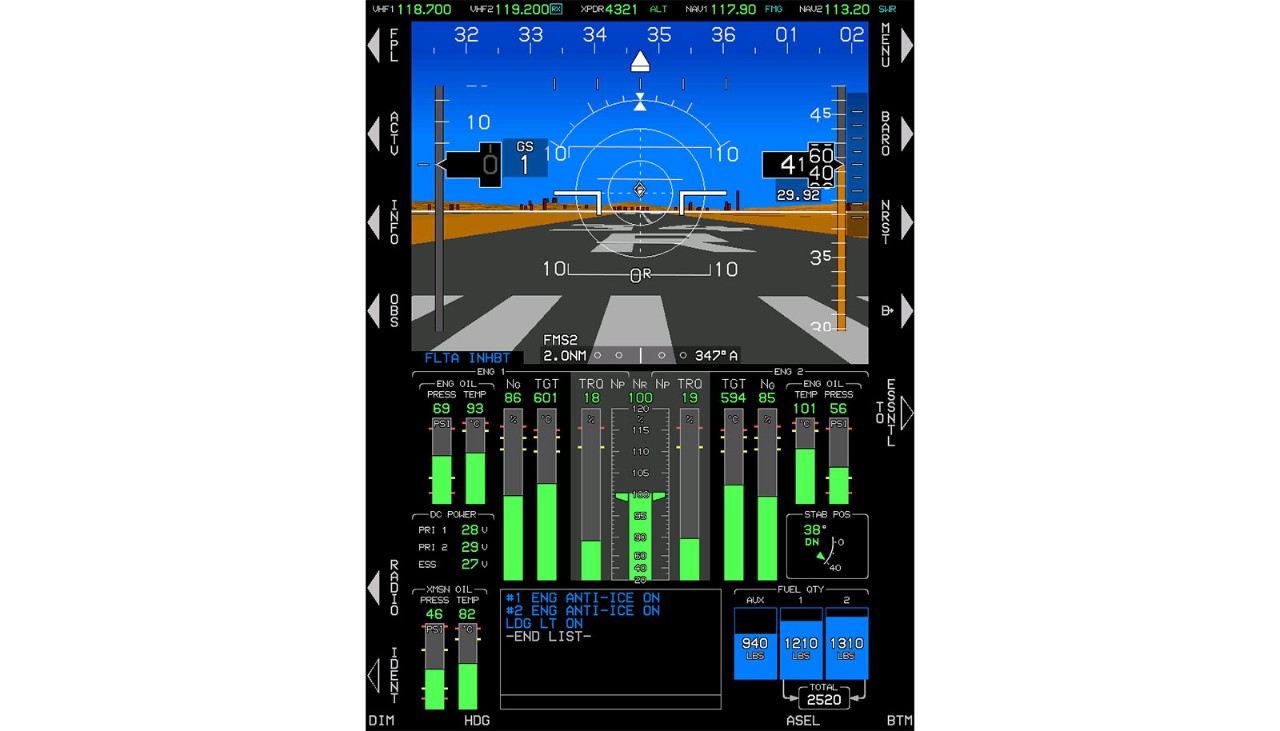

EICAS Upgrade
Provides customizable full engine indication and crew alerting system, replacing outdated gauges and annunciators.
Features Include:
- Color graphical presentation, reducing cockpit workload
- Enhances safety
- Warning and Caution messages are tailored to eliminate incorrect interpretation
- Exceedence log recording

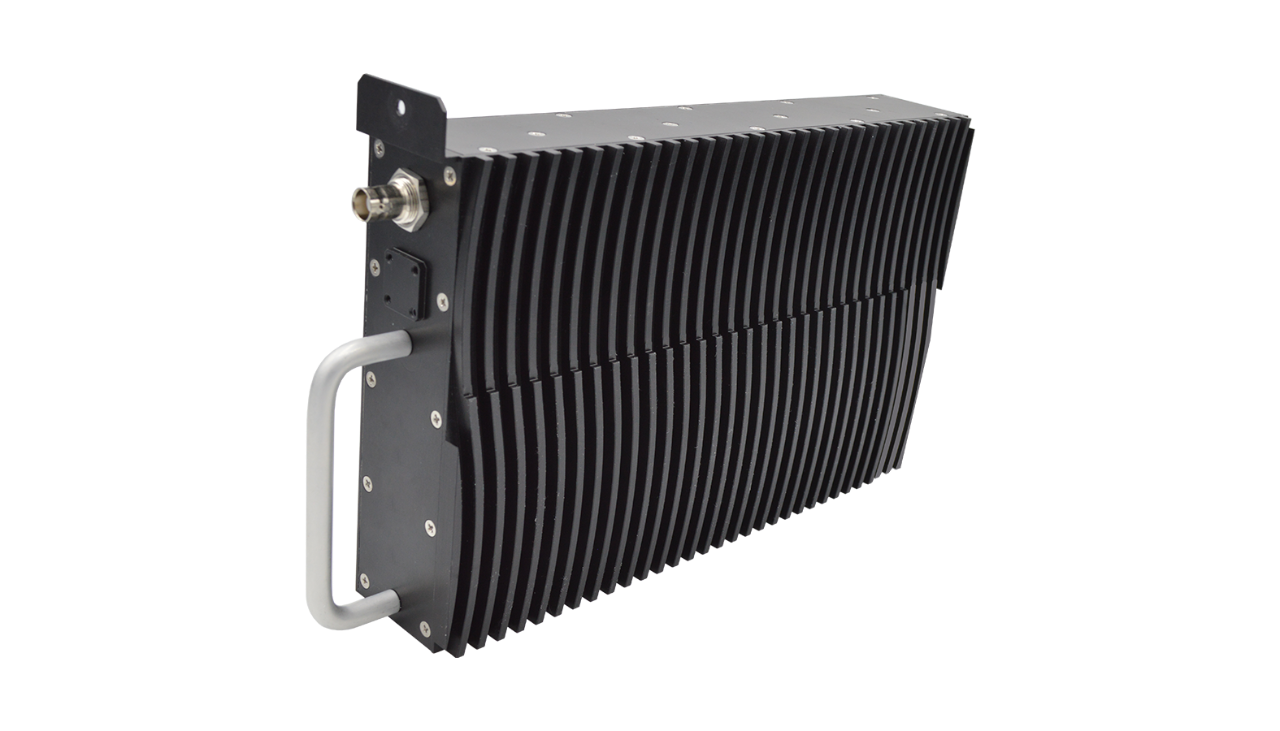

NAV/COMM Radio - GDR
The Genesys Digital Radio (GDR™) is a family of remote-mount, software definable radios combining VOR/localizer/glideslope and marker beacon navigation and VHF communication with a UHF communication option in a single box. GDR lowers weight, increases reliability, reduces cost, and increases mission readiness.
