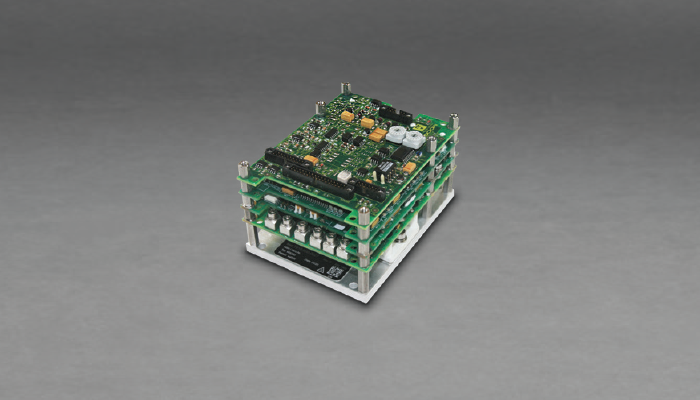

MSA70D Digital Single Axis 70A Open Frame Motor Controller

This robust digital low voltage single axis controller is designed to provide torque, velocity and position loop closure. It has a CAN Bus command interface and also can receive an analog command signal. An open frame design with cold plate mount is used to reduce the overall cost and to allow this controller to be easily incorporated into existing vehicle electronics. The advanced space vector algorithms provide optimum performance for new or existing motors to provide superior power densities. There is also a control power input option that replaces the +/-15V, and 5V supplies with 28V. Additionally, there are a wide range of end user programmable software features, as listed below.

CONTACT OUR EXPERTS >

Jump To:

Features

Literature

Extensive built in test
End-damping limits
Acceleration limits
Comprhensive loop tuning

Tracking/Stabilization Modes
Field weakening
Joystick shaping function

Analog and digital I/O
Status and fault history
Data logging

Performance Characteristics

Parameter	Specifications
Power Supply	18Vdc – 32Vdc
Temperature (Baseplate)	-40°C to 85°C
Command Communication Interfaces	CAN-Bus
Weight	0.5kg (1.1lbs)
Position Sensor Interface	SSI, BISS or EnDat Serial Interfaces
Motor Commutation Sensor	Resolver or Encoder
Envelope	110 x 82 x 61.3mm (4.3 in. x 3.2 x 2.4in)
Self Protection	Over-Temperature and Over-Current
Output Current	70A Peak
