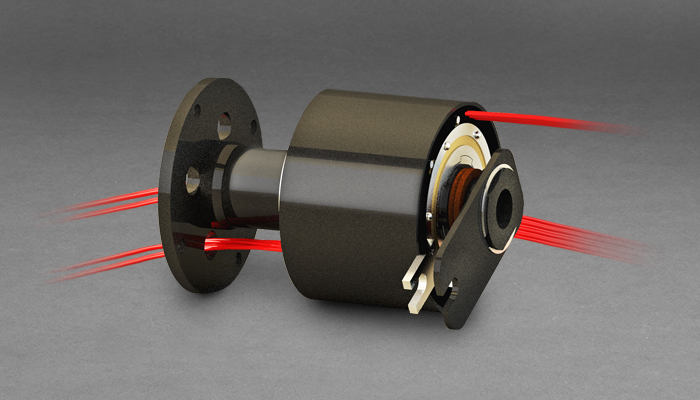

Model 813 Hybrid ESR / Hydraulic FRU
Jump To:
Overview
Specifications
Resources
Related Products
Features
- 1 pass with 1/2 inch BSPP ports
- Suitable for a variety of media
- 600 V / 10 A and 220 V / 2 A circuit combinations
- Rated to 145 psi [10 bar] at 250 rpm continuous service (higher rotational speeds and pressure possible)
- Continuous 360° rotation
- 12 inch lead wire
Benefits
- Optional splash seals for environmental protection
- Fiber brush technology provides long life and maintenance free operation
- Modular electrical slip ring design
- Transfers analog and data signals
- Available with Ethernet
Typical Applications
- Semiconductor pick and place robot applications
- Packaging equipment
- Automated handling
Specifications
| Fluid Rotary Union Component Specifications | |
| Operating Temperature | -20°C to +60°C |
| Passes Quality Size | 1 x 1/2 inch BSPP |
| Continuous Pressure and Speed1 | 145 psi [10 bar] @ 250 rpm |
| Maximum Pressure1 | 180 psi [12.5 bar] |
| Maximum Speed1 | 250 rpm (intermittent or with sufficient cooling from medium) |
| Maximum Torque (Estimated)2 | 2.5 lb-in [280 N-mm] |
| Environmental | IP64 environmental seal |
| Options | Stainless steel construction |
1Operational life is dependent on pressure, temperature, rotational speed duty cycle and size of assembly. Maximum values do not apply concurrently. Please consult the factory for actual value.
2Break-in torque may be higher
3Flexible conduit should be used to couple to the rotating component. The torque arm must be loose coupled.
Resources
Literature
Data Sheets
Integration Checklist
Technical Support
Telephone: +1-902-468-2263
