Industrial Rotary Unions

Moog's rotary unions are currently used around the world for the transfer of media between stationary and rotating machine parts in almost all branches of the industry to ensure reliable transmission of media as oil, water, grease, emulsion as well as (compressed) air, gas, or vacuum. A wide range of speeds and pressures are offered.

Our rotary unions are designed for a variety of industrial applications. They are fully integrated solutions and can be combined with our electrical slip rings and fiber optic rotary joints.

Moog offers standard solutions as well as customized solutions on request.

Lower Speeds (< 250 RPM)

Model Passes /
Size
Pressure Speed
(rpm)
Model 301 1 pass
0.5 in
145 PSI
(10 bar)
≤ 250
Model 306 2 passes
0.5 in
145 PSI
(10 bar)
≤ 100

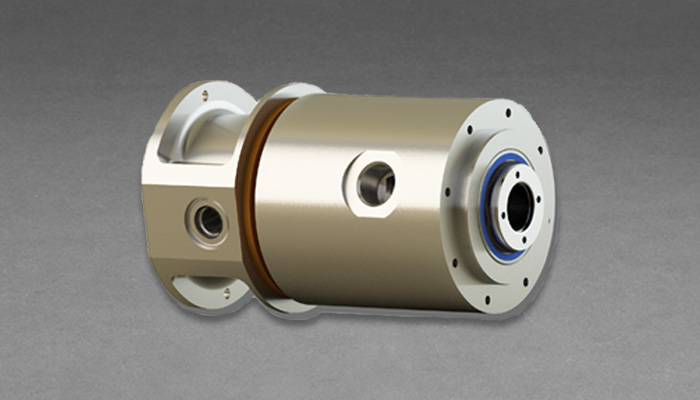

Model 801
2 passes
0.5 in
120 PSI
(8 bar)
≤ 120
Model 266 Model 314 Fluid Rotary Union 1 pass
0.5 in
Vacuum ≤ 180
Model 813 1 pass
0.5 in
145 PSI
(10 bar)
≤ 250

Higher Speeds (> 250 RPM)

Model   Passes /
Size
Pressure Speed
(rpm)
Rotostat E ≤ 12 passes
≤ 1.5 in
5,076 PSI
(350 bar)
15,000

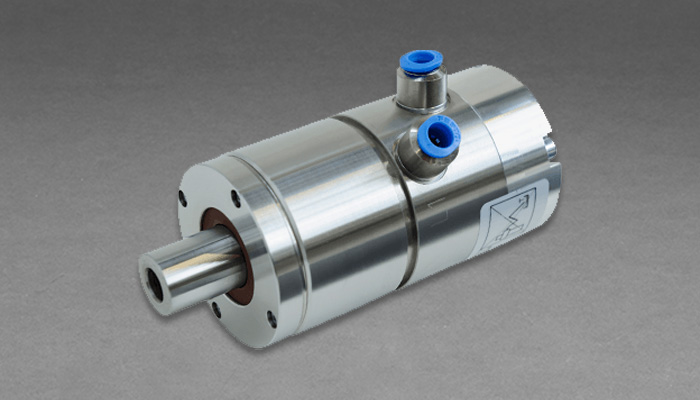

Rotodisk S 1 pass
≤ 1.5 in
2,900 PSI
(200 bar)
100,000
Rotodisk SW ≤ 10 passes
≤ 1.5 in
3,625 PSI
(250 bar)
10,000

Integrated Systems (Rotary Union + Slip Ring)

Model Passes /
Size
Pressure Speed
(rpm)
Model 266 Model 314 Fluid Rotary Union 1 pass
0.5 in
Vacuum ≤ 180
Model 813 1 pass
0.5 in
145 PSI
(10 bar)
≤ 250

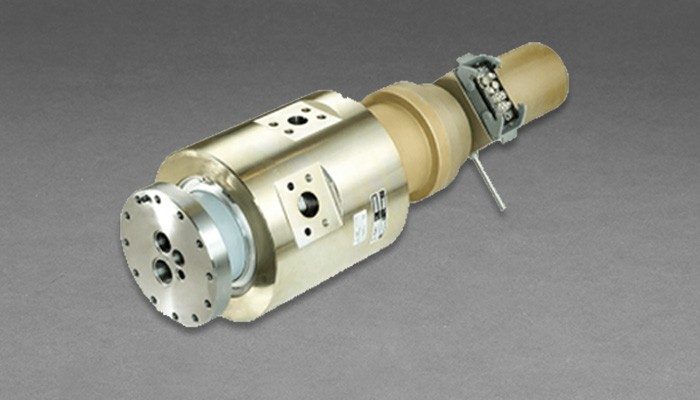

Rotokombi ≤ 30 passes
≤ 2 in
7,252 PSI
(500 bar)
≤ 10,000
