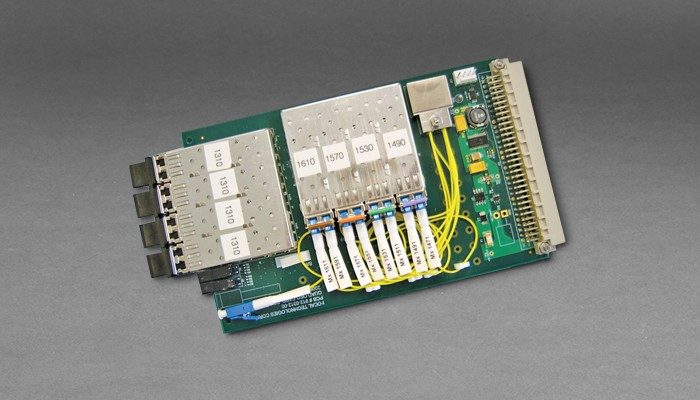

912-OEO-8
8-CHANNEL OEO WAVELENGTH CONVERTER

The 912-OEO-8 is an Optical-Electrical-Optical (OEO) signal converter that provides several functions, including optical wavelength conversion, optical signal boosting, and optical multiplexing. Although many configurations are possible, the standard card combines optical signals from eight separate fibers into a single fiber, often with increased optical power budget to significantly extend the range of the original signals or pass the signals through higher loss cabling systems. The signals are converted back to their original wavelengths at the other end of the fiber link, thus providing a transparent, bidirectional system.
The form-factor and proven reliability of Moog products make the Model 912-OEO-8 ideal for applications such as FPSO (Floating Production, Storage and Offloading) units, optical data and telemetry networks, specialized industrial machines, advanced work class ROVs, tactical and industrial security networks, and armored vehicle platforms.
Features
- Modular design (3U Eurocard)
- Wide range of supported data formats including 10/100/1000 Base-T(X) Ethernet, ATM, SONET, Fibre Channel, SDI/HD-SDI
- Basic link diagnostics via front panel LEDs
- 20 year MTBF
- Custom enclosures available on request
Benefits
- Easy extension of the maximum operating distance of standard optical telemetry equipment
- Reduced number of fibers required in cables and rotary joints
- Increased optical power budgets and robustness of optical links
- Modular format allows future upgrades or augmentation in card-cage systems
912-OEO-8 Specifications | |
---|---|
No. Channels | 8 wavelengths (i.e. 4 bidirectional channels) |
Baud Rate | 125 – 3125 Mbaud |
Format | 10/100/1000 Optical Ethernet, 8b/10b, or other encoding formats |
Latency | <10 ns (not including fiber, ~5 µs/km) |
Optical Fiber | Singlemode (9/125 µm) Multimode (optional) |
Wavelength | Input: 850, 1310/1550 nm standard Output: CWDM, 1471 – 1611 nm standard |
Connectors | LC standard, other types optional |
Power Voltage | +5.0 VDC ±10%, regulated. Other voltages optional |
Power Used | 5 W typical (10 W max.) |
Dimensions | Eurocard Format: 100 mm x 160 mm 4 HP Wide |
Enclosures | Custom card cages and enclosures available, including explosion-proof enclosures for use in Class 1 hazardous locations |
Temperature | 0°C to +50°C (operational) -18°C to +70°C (extended operation option) -40°C to +85°C (storage) |
Humidity | 85% RH, non-condensing |
Vibration | 5 g, 25 1000 Hz, 3 axes |
Shock | 30 g, 11 ms half sine, 3 axes |
MTBF | 200,000 hours minimum |
Contact Us
Technical Support
Telephone: +1-902-468-2263
Typical Applications
- Industrial process control
- Rotating test stations
- FPSO data systems
- Telemetry extenders
