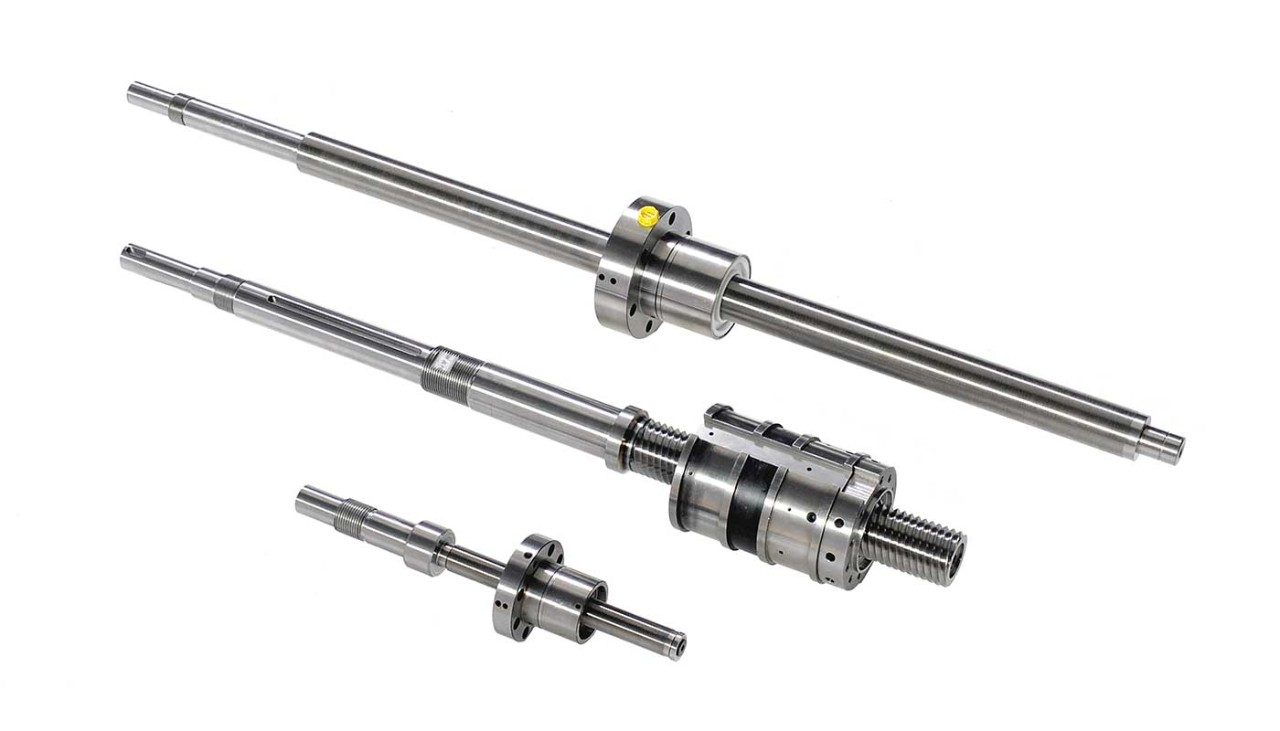

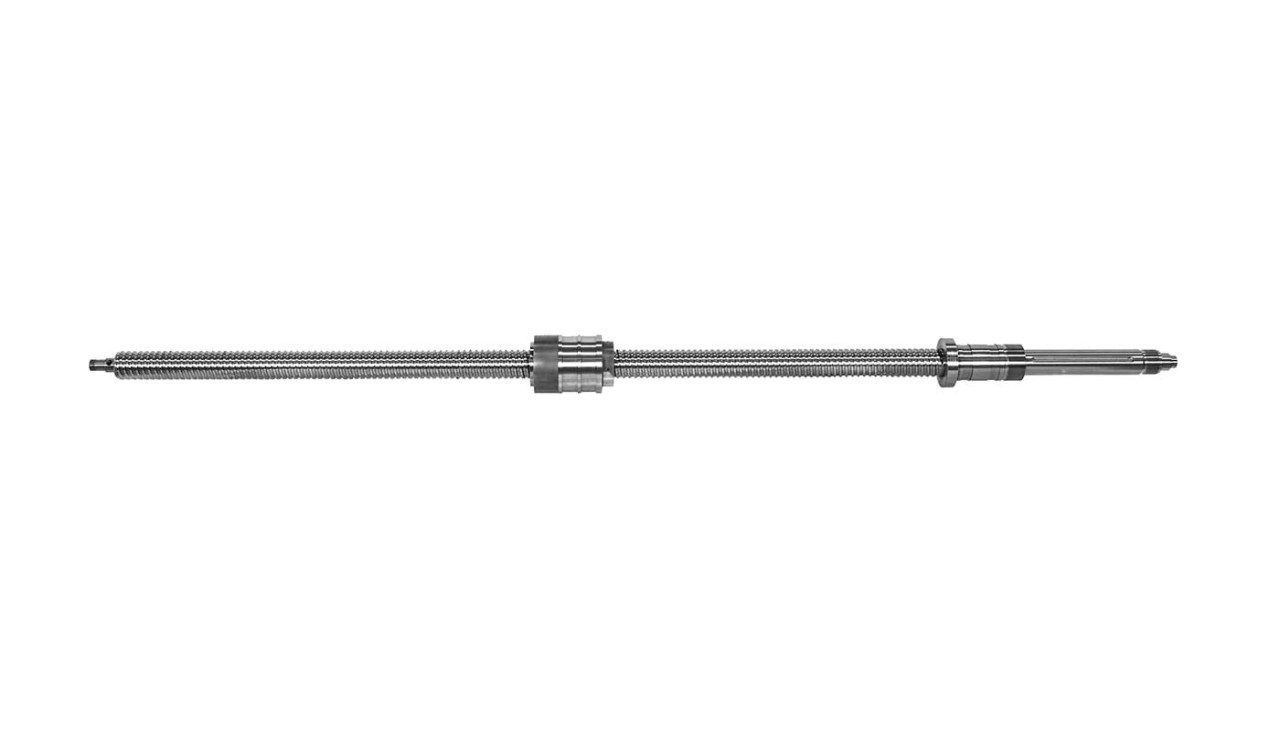

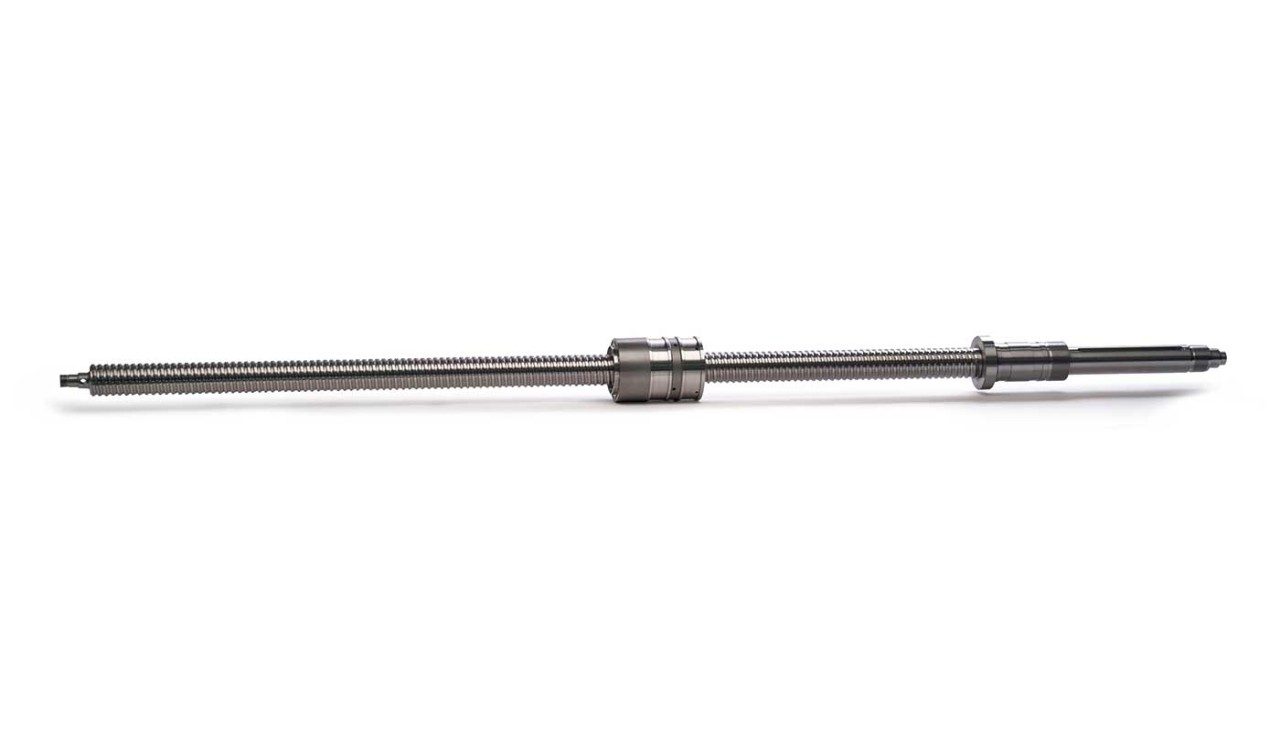

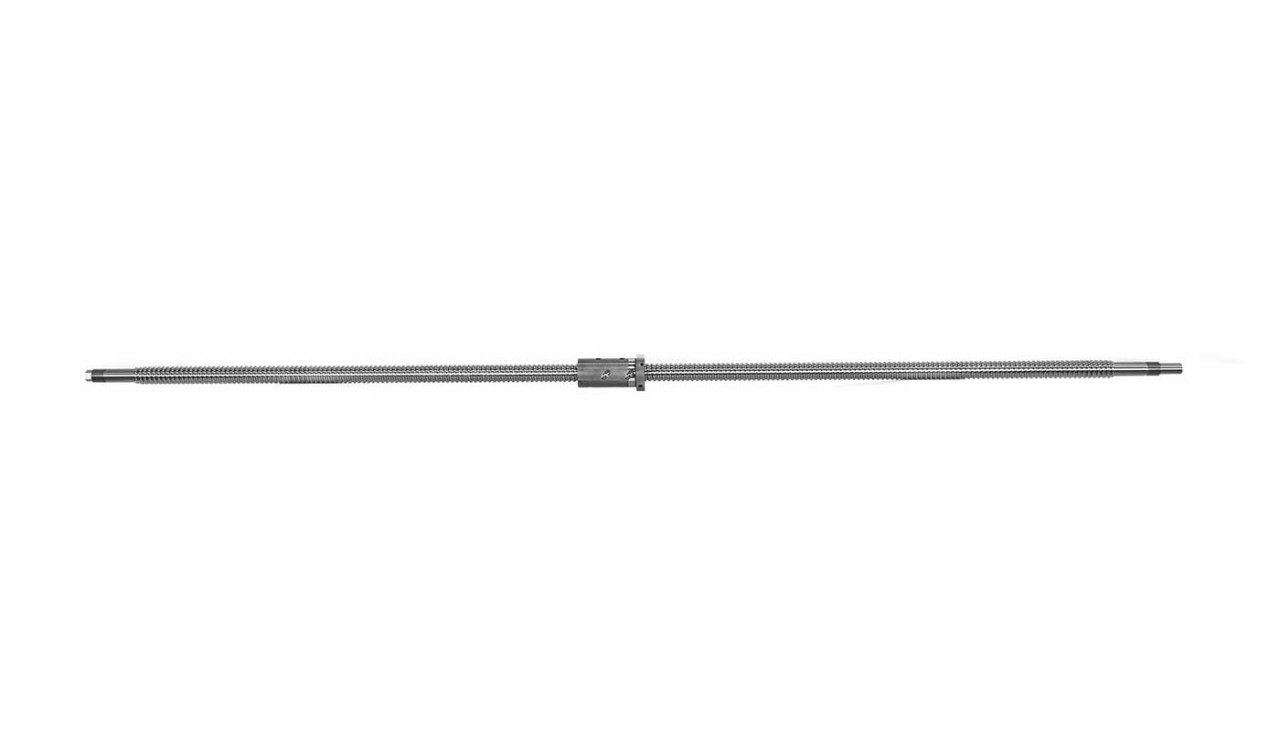

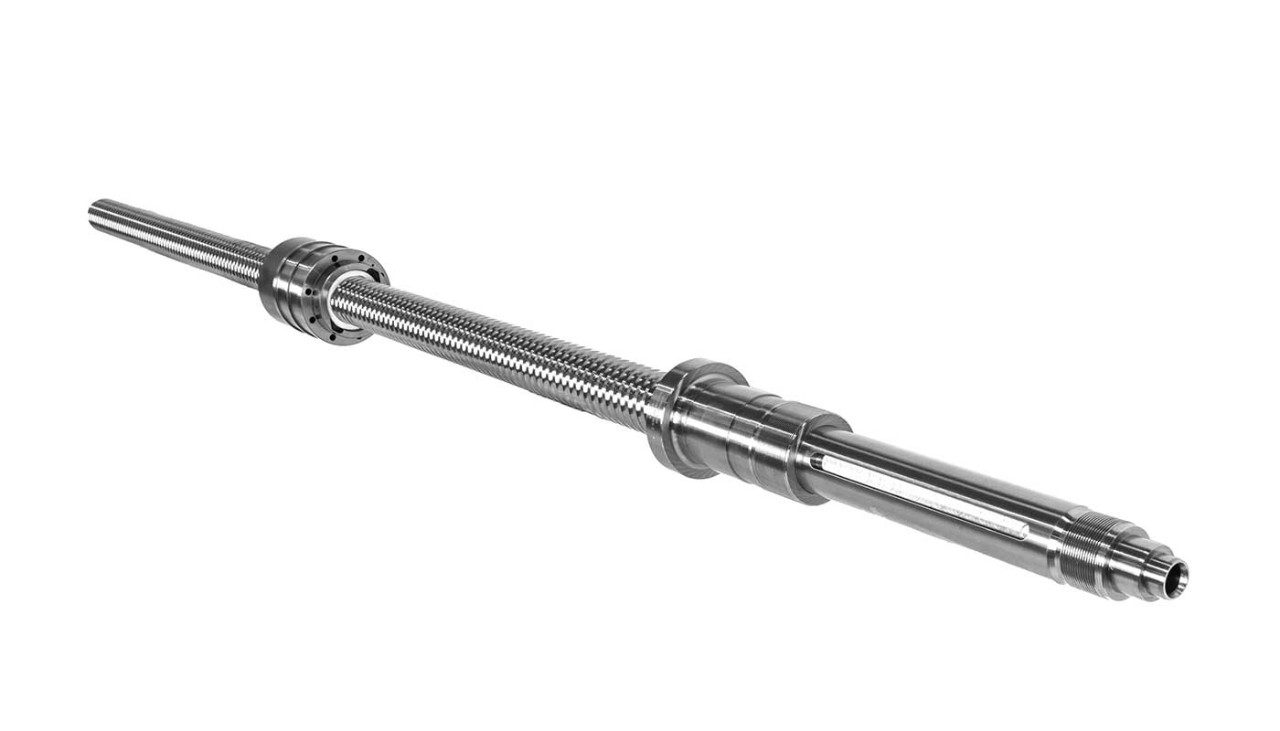

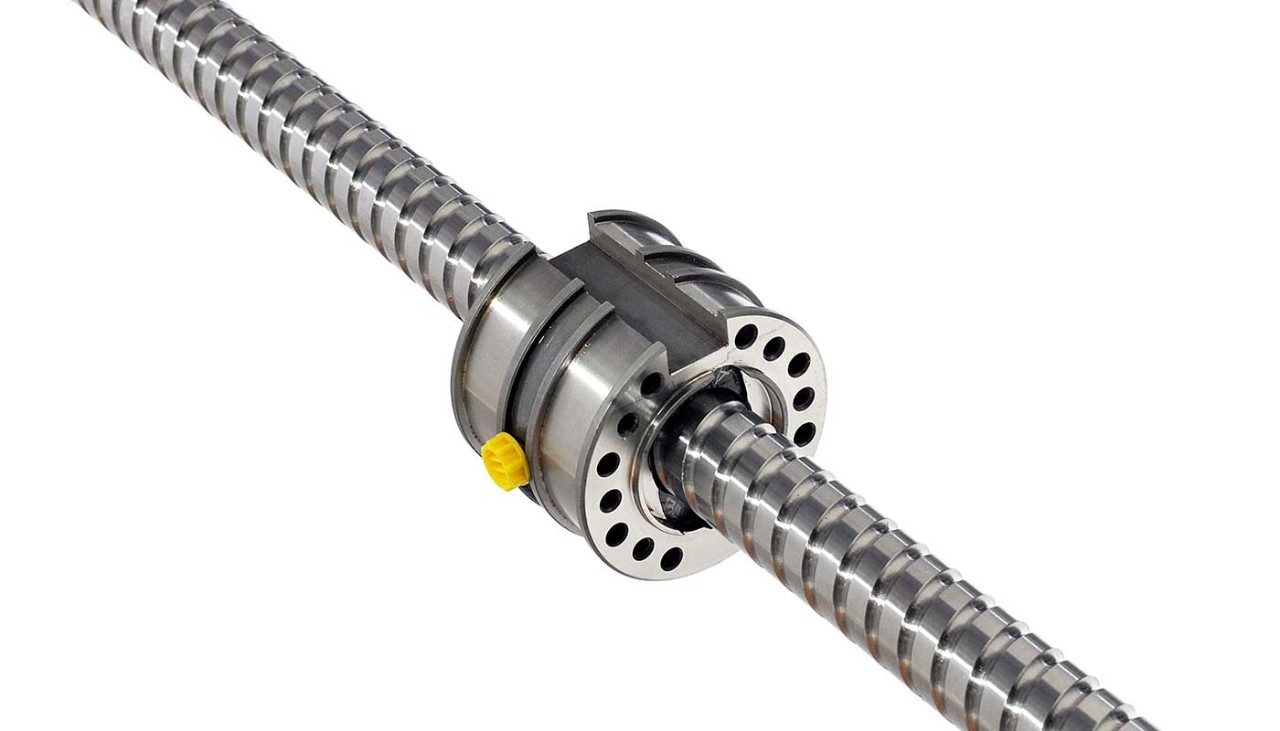

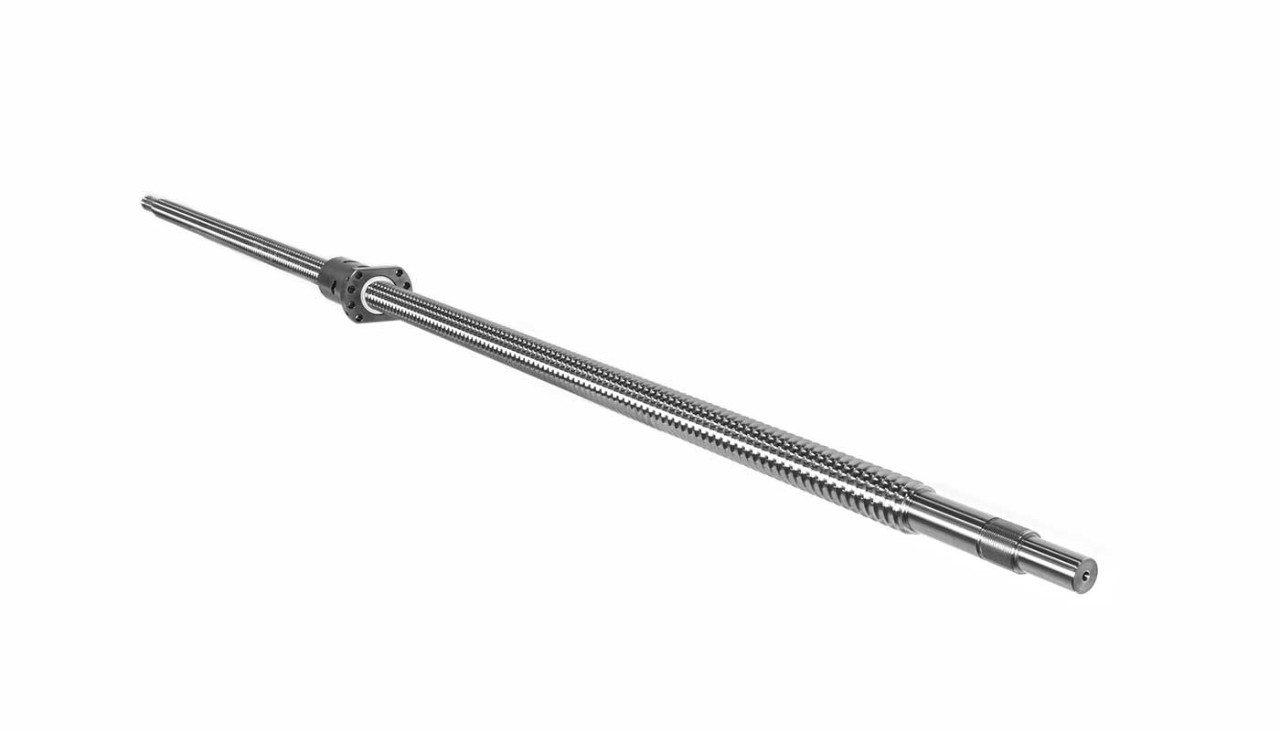

Ball Screws

VERY FLEXIBLE DESIGN FOR LEADING-EDGE MACHINE MANUFACTURERS

Developed to meet the needs of leading-edge machine manufacturers across a wide range of industries, Moog ball screws flexible design provides a unique and competitive advantage in a variety of applications.

BENEFITS AND FEATURES OF MOOG BALL SCREWS

  • ISO3408-3 classes 1-3-5-7
  • Diameter from 12 mm [0.47 in] to 100 mm [3.93 in]
  • Pitch from 1.5 mm [0.06 in] to 80 mm [3.14 in]
  • Length up to 6,200 mm [244 in]
  • Load capacity:
    • Dynamic load up to 1,450 kN
    • Static Load up to 3,300 kN
  • Acceleration 15 to 30m/sec2
  • Single or multi-start

Contact Us

Screws Overview



What is a ball screw?

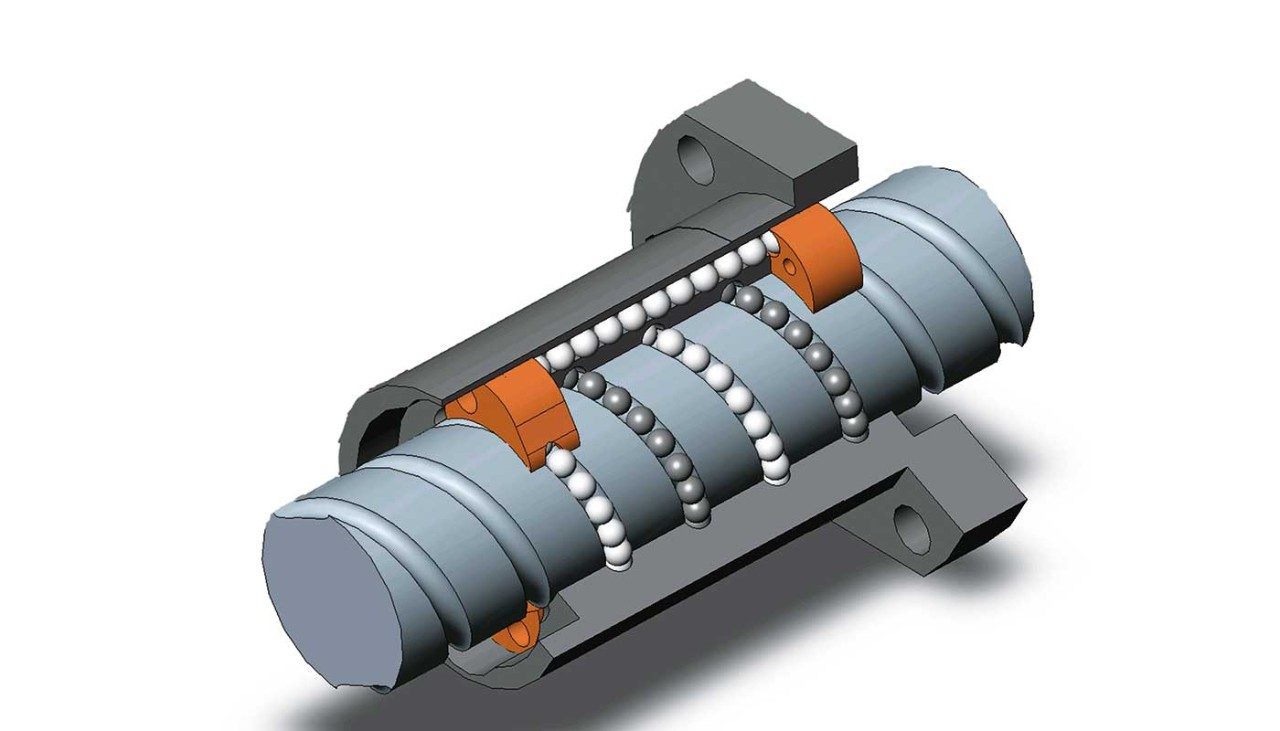

A ball screw is a rolling system consisting of a threaded shaft (screw) and a nut that, internally threaded as well, contains a determined number of balls.

The return of the balls that run in the nut during the rolling is permitted by one or more mechanical elements called liners.

A ball screw is similar to a ball bearing, with the balls travelling in one or more threads
