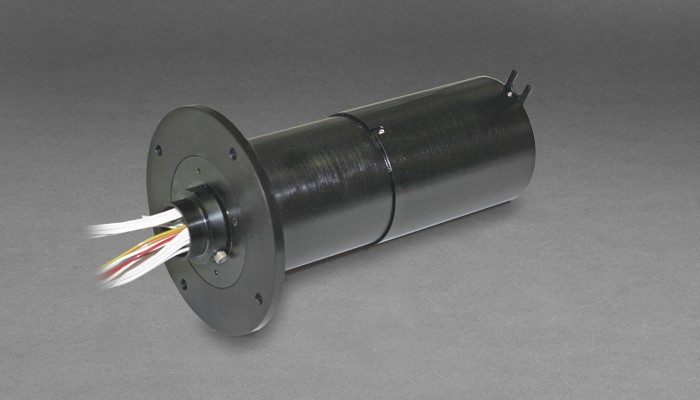

AC7094 Slip Ring
FIBER BRUSH SLIP RING CAPSULE
A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data. A slip ring is also called a rotary electrical joint, collector, commutator or swivel. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires.
The AC7094 provides a compact 2.1 inch outside diameter. The AC7094 provides 5 amp circuits in 30, 36, 42 and 48 ring configurations. Similar in design to our very popular AC4598 and AC6200 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications.
For more information about how Moog's compact slip ring capsule can fit your specific application, contact our slip ring experts.
Features
- Compact 2.1 inch outside diameter
- Speeds up to 250 rpm
- Multiple circuit configurations
- Continuous rotation of power and / or data signals
- High-impact thermoplastic construction
- Gold plated rings
- Available with Ethernet
Benefits
- Transfers power, as well as analog and digital signals
- Compatible with data bus protocols
- Fiber brush technology provides long life and maintenance free operation
- Compact packaging
Options
- 24, 36 and 48 inch leads
- Longer leads available
AC7094 Specifications | |
---|---|
Operating Speed | 250 rpm* |
Number of Circuits | 30, 36, 42 or 48 |
Lead Length | 12 inch standard |
Lead Size / Type | 22 AWG |
Voltage | 240 VAC |
Operating Temperature | -40°C to +80°C |
Current Rating | 5 amps / circuit |
Electrical Noise | 100 milliohms max. |
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature. |
Contact Us
Typical Applications
- Precision rotary equipment
- Semiconductor handling systems
- Industrial machinery
- Robotics
