SRA-73625 Slip Ring

COMPACT SLIP RING CAPSULE

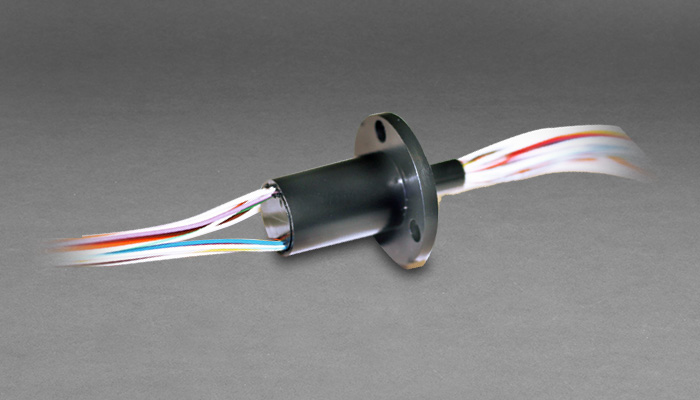

SRA-73625 Compact Slip Ring Capsule

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

The SRA-73625 compact slip ring capsule provides up to 18, 2 amp rated contacts in a small, .44 inch diameter design. Color-coded lead wires are provided on both the rotor and stator to allow simplified electrical connections. Similar in design to our SRA-73540, the SRA-73625 allows tremendous flexibility in dealing with system size restrictions.

For more information about how Moog's compact slip ring capsule can fit your specific application, contact our slip ring experts.

Features

  • 18 circuit
  • 2 amp, 120 VAC
  • Precision assembly to provide exceptional rotational life
  • Speeds up to 250 rpm
  • Compact size .44 inch diameter
  • Gold-on-gold contacts
  • Mounting flange on housing
  • Flexible, color-coded, silver-plated, stranded copper lead wire
  • Superior handling of low level control signals
  • GigE model, SRA-73799, available

Benefits

  • Extremely compact
  • Low torque
  • Quick shipment
  • High bandwidth transfer capability
SRA-73625 Specifications
Operating Speed 250 rpm*
Number of Circuits 18
Lead Lengths 12, 24, 36 and 48 inches
Lead Size / Type #28 AWG, Teflon® insulated, stranded cond.
Voltage 120 VAC
Max. Ambient Temperature -40°C to +80°C
Contact Material Gold
Current Rating 2 amps per circuit
Noise 60 milliohms max.
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

Contact Us

Typical Applications

  • CCTV pan / tilt camera mounts
  • Medical equipment
  • Robot end effectors
  • Miniature cable reels
  • Laboratory equipment
