EC3848 High Speed Slip Rings
HIGH SPEED SLIP RING
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transmitting power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel or rotary joint. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from moving joints.

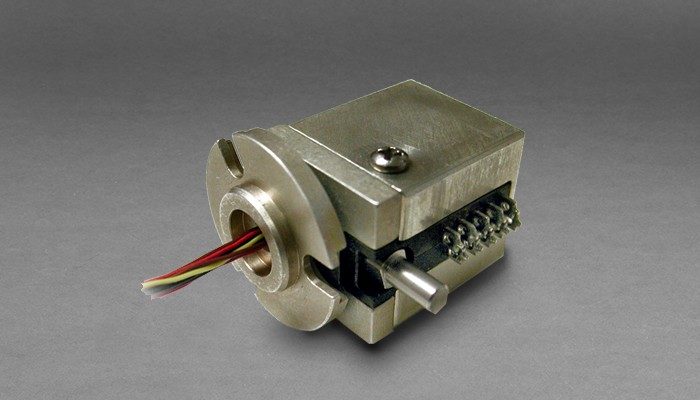

The EC3848 high speed slip ring features precious metal brushes and rings. Flying lead wires on the rotating side and solder terminals on the stator side complete the electrical connections. Precision ball bearings and the patented fiber brush design allow operation up to 10,000 rpm without the need for cooling equipment. Fiber brush technology offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force per fiber and low contact wear rates. In addition, fiber brushes do not require lubrication and produce virtually no wear debris.
For more information about how Moog's high speed slip rings can fit your specific application, contact our slip ring experts.
Features
- Speeds up to 10,000 rpm without cooling
- 2, 6, 8 and 10 circuit models
- Precision ball bearings
- 1 amp / 100 VDC circuits
- Precious metal contacts
Benefits
- Transfers control and data signals
- Fiber brush technology provides maintenance-free operation (no lubrication required)
- Standard design meets high speed requirements at a fraction of the cost of a custom assembly
EC3848 Specifications | |
---|---|
Operating Speed | 0 - 10,000 rpm* |
Number of Rings | Up to 10 (2, 6, 8 and 10) |
Electrical Connections | 30 (19 / 42) AWG leads on rotor Solder terminals on stator |
Voltage | Low millivolt range to 100 VDC |
Maximum Ambient Temperature | 50°C (120°F) over 1,000 rpm 80°C (175°F) up to 1,000 rpm |
Contact Material | Precious metal |
Current Rating | 1.0 amps maximum per ring |
Electrical Noise | 20 mΩ at 5 rpm 6 VDC, 50 mA current |
Cooling | Not required |
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature. |
Contact Us
Typical Applications
- Centrifuges
- Various high speed instrumentation applications such as tire testing
