Airbus EC-145e Avionics Platform
Improving Capabilities Of The EC-145e
Originally launched as a standard VFR platform, Moog developed an IFR Platform incorporating the latest Genesys Rotorcraft Autopilot/EFIS technology for the Airbus EC145e. Moog supported an STC for the aircraft with the modernized Genesys Avionics Suite, including an IFR-certified, 3-Axis Autopilot, and the IDU-450 EFIS smart display.
Flight Deck Upgrade Solution
Modernizing the Airbus EC-145e platform.
The Genesys Avionics Suite

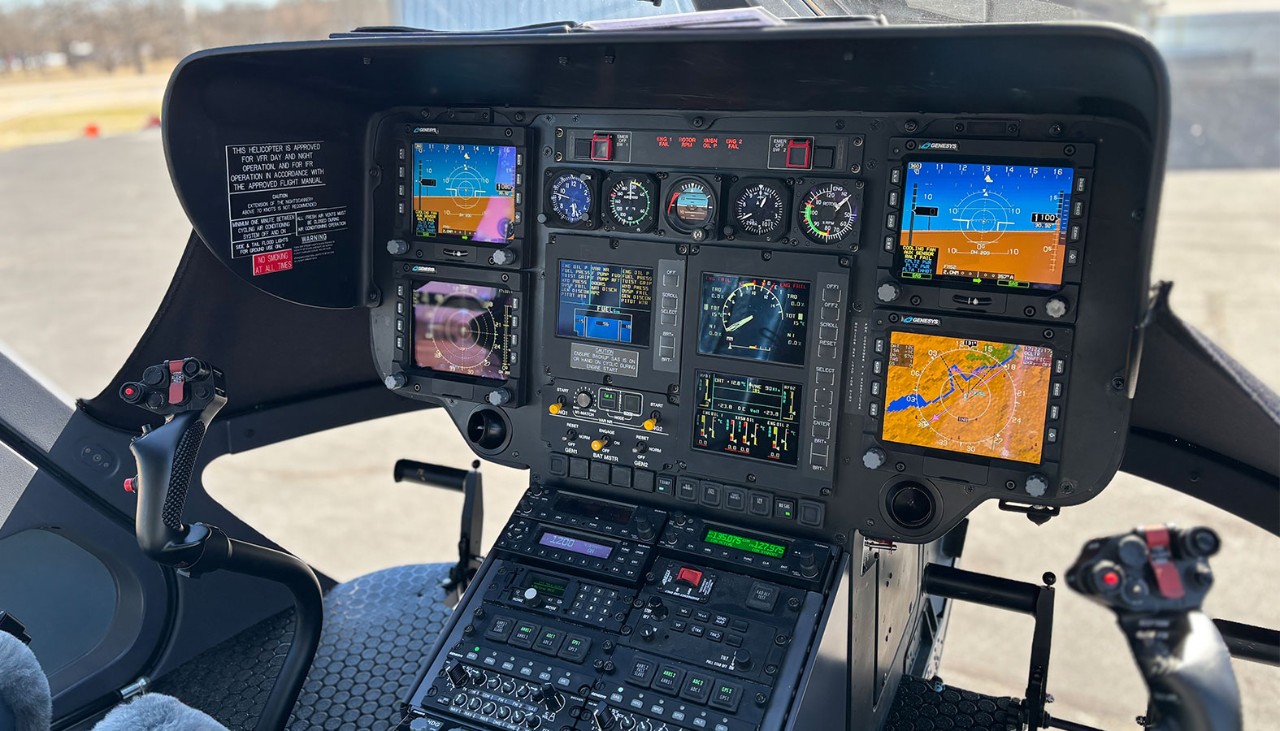

The Genesys Avionics Suite designed for the Airbus EC-145e features four IDU-450 displays in a dual-sided PFD/MFD format, dual redundant ADAHRS, Dual GPS/FMS, and IFR-certified GRC Autopilot & Stability Augmentation System (SAS).
The comprehensive, Level A certified IDU-450 weighs only 4.5 lbs. (2 kg) while offering high-resolution LCD glass, 3D Synthetic Vision, Highway-In-The-Sky (HITS), Enhanced HTAWS, Integrated FMS, Hover Vector and more. The avionics suite features the Genesys GRC Rotorcraft Autopilot, allowing operators to fly IFR in single or dual-pilot operations. Due to the Genesys lightweight avionics suite, operators are able to utilize increased payloads and equipment flexibility on each EC-145e.
Glass EFIS Upgrade: IDU-450 Displays
Moog's lightest, most comprehensive, integrated Electronic Flight Instrument System enhances safety, reduces pilot workload, and increases mission flexibilty. Features include:
- Redundant ADAHRS attitude source (replaces legacy attitude sensors)
- Redundant GPS/SBAS receivers
- Dual NAV/COMM radios
- Integrated radio/audio management
- Mode S ADS-B compliant transponder
- Weather radar control and display
- Built-in support/interfaces for FLIR, Satcom, DF, HF, UHF, TACAN, Datalink, SELCAL, tactical radios, etc.

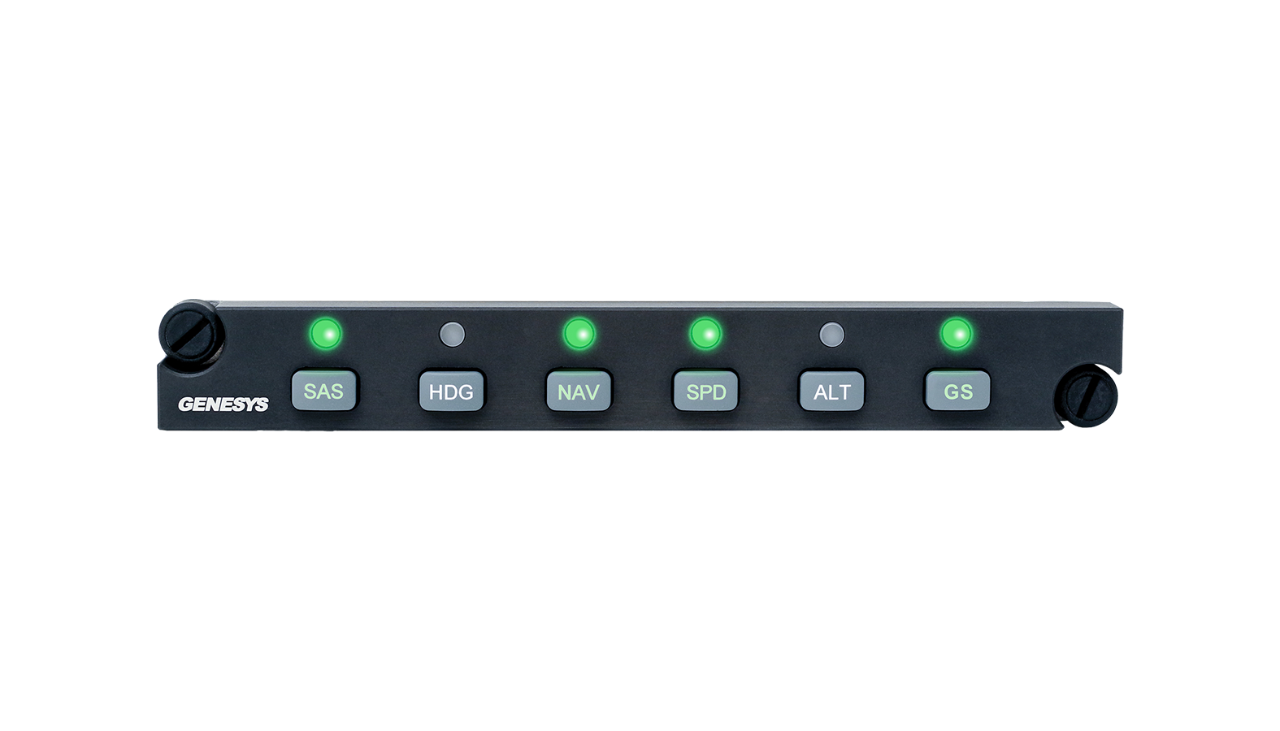

Autopilot With SAS
Delivers safety and workload reduction benefits with fully coupled IFR approved autopilot and stability augmentation in a compact lightweight package.
Features include:
- Lightweight, weighs less than 30 pounds (14 kg)
- Dramatically reduced pilot workload
- Safer, more confident command, even under demanding conditions
- Autopilot fully-coupled to FMS, GPS, and navigation radios
- Designed with three-axis (pitch, roll and yaw) autopilot configuration for IFR use
