Brakes & Feedback Devices

Asymmetry Brakes are used to prevent flap movements in the event of mechanical failure in the transmission or a runaway condition. RVDTs are sensors that provide motion feedback to the control system.

Moog’s heritage includes position-sensing and braking devices.  Common features of these devices include rotary variable differential transformers (RVDTs) and asymmetry and overspeed arresting brakes.  Moog also provides slat and flap skew detection systems, including lanyard-style linear variable differential transformer (LVDT) technologies.

Brakes & Feedback Device Technologies

Asymmetry Brakes

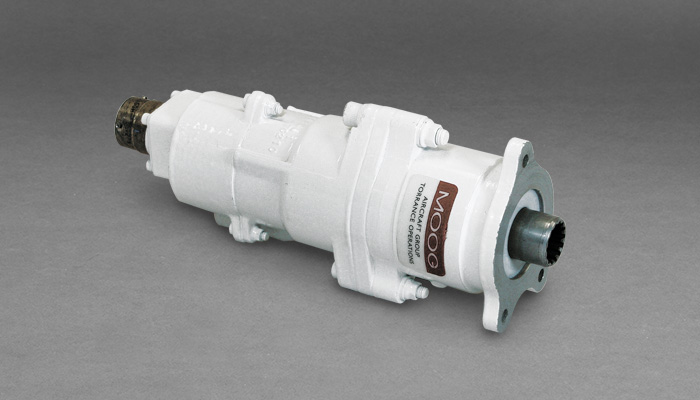

Moog F-16 Asymmetry Brake

Representative asymmetry brake from leading edge flap actuation system on a military fighter.

Position & Speed Sensors

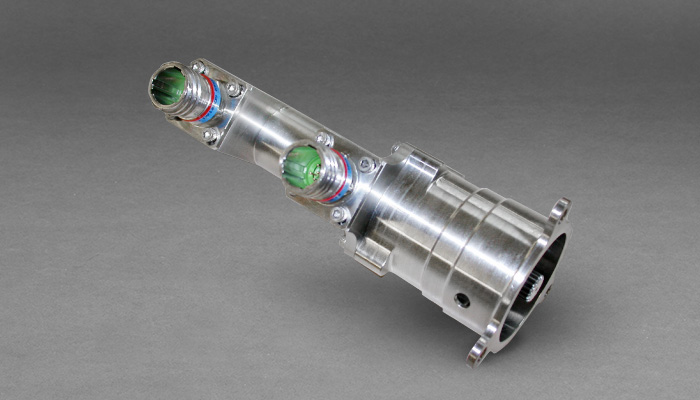

Moog 787 Leading Edge Resolver

Representative rotary variable differential transformer (RVDT) position sensor for commercial transport leading edge slat transmission.
