Power Drive Units

A Power Drive Unit converts electrical or hydraulic power into mechanical motion (often rotary) and drives a mechanical actuation system.

Moog’s heritage in power drive units covers electrical and hydraulic inputs in torque and speed summed configurations.  Hybrid hydraulic/electric-powered drives have been used in some applications.  Power drive hardware includes hydraulic motors and control modules, electric motors, reduction gearing, stop modules, torque limiters, and braking mechanisms.

Power Drive Unit Technologies

Hydraulic Power Drive Unit

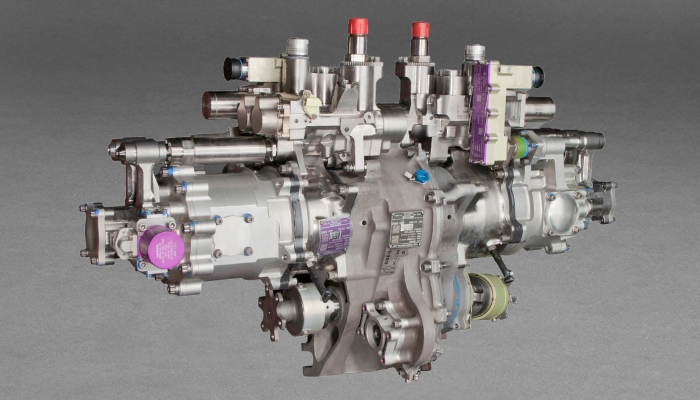

Representative hydraulic power drive unit for commercial aircraft flap drive system.

Electrical Power Drive Unit

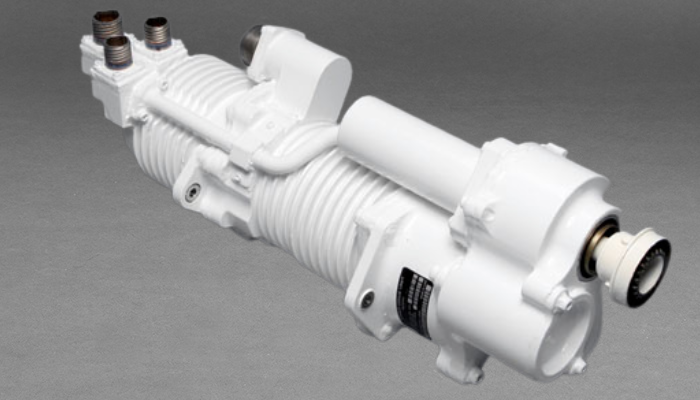

Dual-redundant electric power drive unit for leading-edge flap actuation system on a military fighter.
