Model 813 Hybrid ESR / Hydraulic FRU

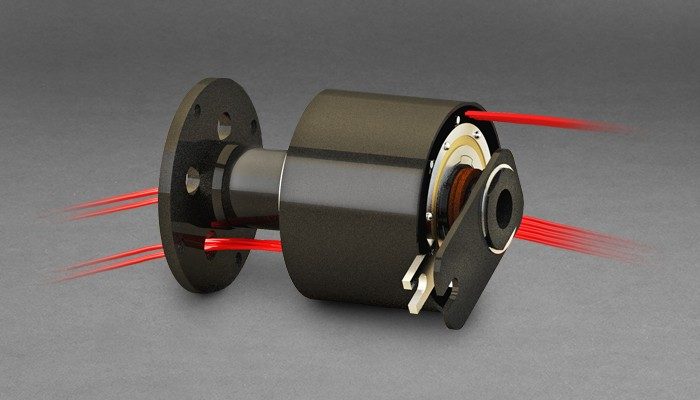

HYBRID FLUID ROTARY UNION / ELECTRICAL ASSEMBLY
The Model 813 electrical and fluid rotary union consists of a single fluid pass with 600 V / 10 A and 220 V / 2 A power / signal circuit combinations. The design features sealed-for-life rolling element bearings and fiber brush technology for ultimate performance and long, maintenance free life in many challenging applications.
Features
- 1 pass with 1/2 inch BSPP ports
- Suitable for a variety of media
- 600 V / 10 A and 220 V / 2 A circuit combinations
- Rated to 145 psi [10 bar] at 250 rpm continuous service (higher rotational speeds and pressure possible)
- Continuous 360° rotation
- 12 inch lead wire
Benefits
- Optional splash seals for environmental protection
- Fiber brush technology provides long life and maintenance free operation
- Modular electrical slip ring design
- Transfers analog and data signals
- Available with Ethernet
| Fluid Rotary Union Component Specifications | |
|---|---|
| Operating Temperature |
-20°C to +60°C |
| Passes Quality Size |
1 x 1/2 inch BSPP |
| Continuous Pressure and Speed1 |
145 psi [10 bar] @ 250 rpm |
| Maximum Pressure1 |
180 psi [12.5 bar] |
| Maximum Speed1 |
250 rpm (intermittent or with sufficient cooling from medium) |
| Maximum Torque (Estimated)2 |
2.5 lb-in [280 N-mm] |
| Environmental |
IP64 environmental seal |
| Options | Stainless steel construction |
| 1 Operational life is dependent on pressure, temperature, rotational speed and duty cycle. Maximum values do not apply concurrently. Please consult the factory for actual value. 2 Break-in torque may be higher Flexible conduit should be used to couple to the rotating component. The torque arm must be loose coupled. |
|
Contact Us
Technical Support
Telephone: +1-902-468-2263
Typical Applications
- Semiconductor pick and place robot applications
- Packaging equipment
- Automated handling
