907-GEM
GIGABIT ETHERNET (GBE) MULTIPLEXER
/907-GEMMultiplexer_prod_banner_narrow.jpg)

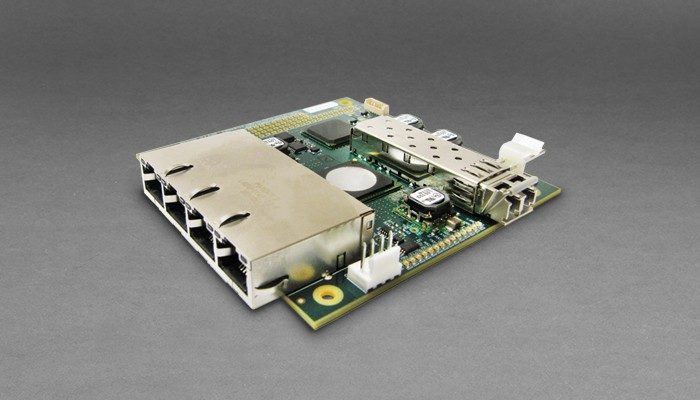

The 907-GEM is an expandable Gigabit Ethernet (GbE) multiplexer that enables modular fiber optic telemetry solutions, particularly for Ethernet intensive applications. As a motherboard, the 907-GEM provides four completely independent and “switchless” 10/100/1000 Mbps Ethernet links and can be stacked with standard 907 expansion cards to add other signal types, such as serial channels (RS-232/485/422), hydrophones, responder triggers, CAN Bus and various analog and digital sonars. Given the growing adoption of real-time Ethernet for critical control systems and digital video (e.g. GigE Vision), the low latency 907-GEM is an exceptional core solution for current and future applications.
As a standalone card, 907-GEM replaces four separate Ethernet media converters with a single board and a single fiber link. This significantly reduces size and cost compared to standard media converter solutions, which typically require 2-4 stacked cards plus four transceivers, eight fibers and an optical coupler for the same Ethernet capability.
A wide range of optical options are available for the 907-GEM, including CWDM wavelengths for optical multiplexing with other media converters and multiplexers. Optical power budgets of 20-30 dB over 10 km of singlemode fiber, and multimode links of up to 2 km are also supported. In addition to on-board LEDs, the 907-GEM includes integrated diagnostics accessible via the diagnostics card (907-DIAG-E) and graphical user interface (GUI) software.
Features
- Four independent (switchless) and low latency 10/100/1000 Mbps Ethernet links
- Compatible with non-standard Ethernet frames, e.g. multi-beam sonars, and jumbo frames
- Interchangeable SFP optical transceiver
- Rugged design for harsh environments, including pressure tolerant version
- Compatible with 907-DIAG-E diagnostic card and Graphical User Interface (GUI) software
- Supports up to six 907 expansion cards
Benefits
- Reduces cost and size for systems with multiple Ethernet media converters
- Provides low latency for real-time systems
- Simplifies troubleshooting with advanced diagnostics
- Enables expandable and reconfigurable multiplexer solutions
- Replaces many fiber links and transceivers with a single fiber link
- Supports a wide range of optical options, including CWDM wavelengths and multimode configurations
| 907-GEM Specifications | |
|---|---|
| No. Copper Ports | 4 (non-switched, independent) |
| Data Rates | 10/100/1000 Base-T(X) |
| Total Throughput | 500 - 2500 Mbps, via switch setting (0.01% used for embedded diagnostics) |
| Latency | < 15 μs (1000 M) < 150 μs (100 M) Less than 2 frame times Does not include fiber delay |
| Optical Fiber | 1 or 2 singlemode (9/125 um) |
| Baud Rate | 625 - 3125 Mbaud |
| Format | AME-EP (Moog proprietary) |
| Wavelengths | 1310/1550 nm standard (CWDM optional, 1471 - 1611 nm) |
| Flux Budget | > 20 dB (24 dB typical) |
| Power Voltage | +5 VDC +/-10%, regulated |
| Power Current Draw | 1.5 A typical (2 A max.) |
| Power Used | 7.5 W typical (10 W max.) |
| Voltage Protection | Overvoltage, reverse polarity, 3 A time-delay fuse |
| LEDs | Power (electrical), Optical Link, Optical Fault, PHY Rx/Tx Activity, Port Rate, Port Error |
| Ethernet to PC | Diagnostic from remote and console through 907-DIAG-E at console |
| Dimensions | PC/104 (form-factor only) |
| Weight | 125 g (0.27 lb), including SFP |
| Optical Connectors | Dual LC (SFP) |
| Data (Ethernet) | 4 x RJ-45 |
| Power | 2-pin Molex, 0.156 inch pin spacing |
| Stacking | PC/104 (for stacking 907 cards only) |
| Temperature | -10°C to +60°C (operational) -40°C to +85°C (storage) |
| Humidity | 85% RH, non-condensing |
| Vibration | 5 g, 25-1000 Hz, 3 axes |
| Shock | 30 g, 11 ms half-sine, 3 axes |
Contact Us
Technical Support
Telephone: +1-902-468-2263
Typical Applications
- Remotely Operated Vehicles (ROV) and Tether Management Systems
- Ethernet based video systems
- Advanced sonar systems
- Tactical networks and defense systems
- Industrial process control
