907-HDM2
DUAL HIGH DEFINITION VIDEO MULTIPLEXER
/907-HDM2Multiplexer_prod_banner_narrow.jpg)

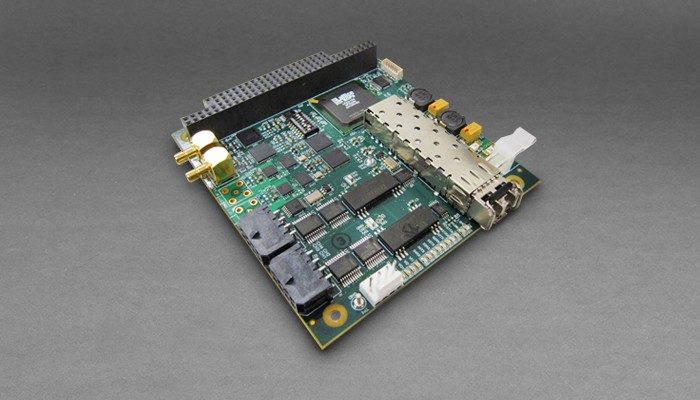

The 907-HDM2 is an expandable High Definition (HD) Video Multiplexer that provides transmission of up to two HD-SDI camera signals along with four on-board serial channels (RS-232/485) for camera controls (e.g. pan and tilt) and sensors. Dual HD inputs on the remote card support connection of two HD-SDI cameras with either one channel at full 4:2:2 sampling and the other sub-sampled at 2:1:1, or both channels sampled at 4:1:1. The 4:2:2 channel can be selected via diagnostic software.
The 907-HDM2 can be used as a standalone card or stacked with a wide range of 907 expansion cards available in a variety of formats, including RS-232/485/422, TTL, Ethernet, CAN Bus, analog sonar, hydrophone, audio, and Tritech ARCNET. It may also be optically integrated into a larger 907 system via CWDM modules. Optical power budgets are typically 20-26 dB over 10 km of singlemode fiber. Enhanced diagnostics are supplied by on-board LEDs and through a dedicated Ethernet link when used with a diagnostics card (907-DIAG-E) and corresponding graphical user interface (GUI) software.
Features
- Dual HD inputs include cable equalization and reclocking to improve recovery of low level or distorted input signals
- Regenerated HD-SDI outputs to minimize jitter
- Interchangeable SFP transceiver
- 4x on-board bidirectional serial channels (RS-232 or RS-485)
- Compatible with 907-DIAG-E diagnostic card and Graphical User Interface (GUI) software
- Rugged design for harsh environments
- Supports up to six 907 expansion cards
Benefits
- Reduces cost and size for systems with need for combined data and HD video
- Supports a wide range of optical options, including CWDM wavelengths
- Simplifies troubleshooting with advanced diagnostics
- Maximum jitter margin available for cabling
| 907-HDM2 Specifications | |
|---|---|
| No. of Channels | 1 or 2 |
| Format | HD-SDI (SMPTE-292M) @ 720p, 1080i and 1080p |
| Data Rate | 1483 or 1485 Mbps |
| Input Buffer | Adaptive cable EQ and reclocker |
| Output Voltage | 800 mVpp nominal |
| Impedance | 75 Ohms, input/output |
| Modes* | Dual Video, optimized (default): 1 x 4:2:2 and 1 x 2:1:1 or 2 x 4:1:1 with serial/backplane data, no ancillary data Dual Video, full HD-SDI: 2 x 4:2:2 no serial/backplane data, no ancillary data Single Switched Video, full HD-SDI: 1 x 4:2:2 (2 inputs) with serial/backplane data, with ancillary data |
| No. Channels | 4 |
| Format | RS-232, RS-485 (selectable) |
| Data Rate | 120 kbps NRZ max. |
| Optical Fiber | 1 or 2 singlemode (9/125 µm) |
| Baud Rate | 2.5 Gbaud (3.125 Gbaud optional) |
| Wavelength | 1310/1550 nm standard (CWDM optional, 1471 - 1611 nm) |
| Flux Budget | > 20 dB (24 dB typical) |
| Power Voltage | +5 VDC +/-10%, regulated |
| Current Draw | 1.3 A typical (2 A max.) |
| Power Used | 6.5 W typical (10 W max.) |
| Voltage Protection | Overvoltage and reverse polarity |
| Current Protection | Time delay fuse (3 A) |
| Dimensions | PC/104 (form factor only) |
| Weight | 125 g (0.27 lb), including SFP |
| Optical | Dual LC (SFP) |
| Video | Mini-SMB (75 ohm) |
| Data (Serial) | 2 x 8-pin Molex (Micro-Fit Series) |
| Power | 2-pin Molex, 0.156 inch pin spacing |
| Stacking Header | PC/104 (for stacking 907 cards only) |
| Temperature | -10°C to +60°C (operational) -20°C to +85°C (storage) |
| Humidity | 85% RH, non-condensing |
| Vibration | 5 g, 25-1000 Hz, 3 axes |
| Shock | 30 g, 11 ms, half-sine, 3 axes |
| LEDS | Power (electrical), optical link, optical fault, serial Tx/Rx, video status |
| Ethernet to PC | Diagnostics from remote and console through 907-DIAG-E card at console |
| *Factory configured modes |
|
