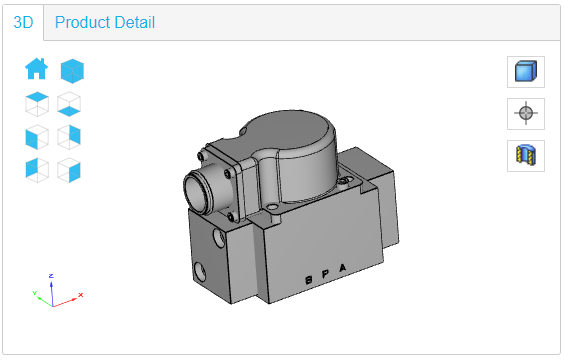

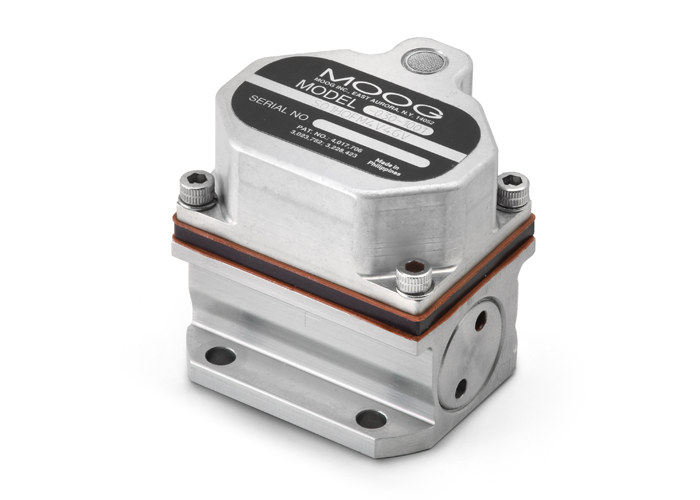

30 Series Servo Valves
Jump To:
Features
Specifications
Resources
Related
Features:
- 2-stage flow control Mechanical Feedback Servo Valve
- Low friction double nozzle pilot stage for high resolution and low hysteresis
- Rugged construction designed for extreme conditions (High shock, vibration or pressure)
- Ultra-Compact, light weight package
- High response for improved control capability
- Stainless steel body and integrated torque motor in an environmentally sealed compartment
| Specifications | |
| Hydraulic Data | |
| Rated Flow* | 0.95 to 6.9 l/min (0.25 to 1.8 gpm) |
| Standard Configurations | 0.95, 1.9, 2.8, 3.8, 5.7, 6.9 l/min (0.25, 0.5, 0.75, 1, 1.5, 1.8 gpm) |
| Max. Operating Pressure | 310 bar (4,500 psi) |
| Performance Data | |
| 100% Step Response** | 2.5 ms |
| Frequency Response*** | 200 Hz |
| Electrical Data | |
| Rated Signal**** | 10 to 40 mA |
| Standard Configurations | 10, 20, 40 mA |
| Physical Data | |
| Size (Mounting Pattern) | Size 01 (ISO 10372-01-01-0-92) |
| Weight |
185 g (6.5 oz) |
| Additional Options | Vented Motor Cap, Reverse Polarity Contact Industrial Application Engineering for additional Flow, Pressure and other options |
* @ ∆p 70 bar (1,000 psi)
** Response at 3,000 psi System Pressure
*** at 90° Phase Lag
**** Single Coil
