SRA-73801 / SRA-73808
ETHERNET SLIP RING CAPSULE
A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and data from a stationary to a rotating structure.

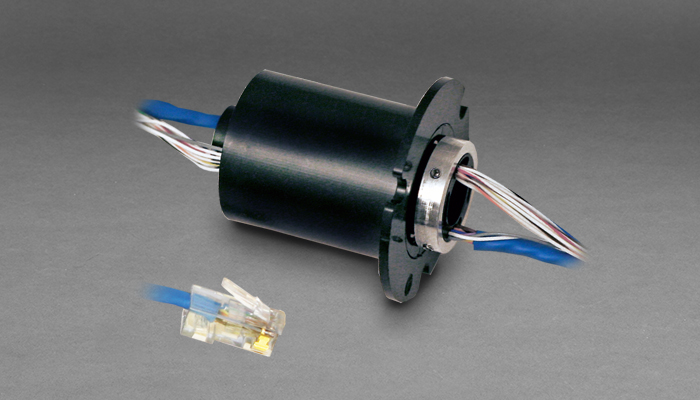

The SRA-73801 and SRA-73808 Ethernet slip rings, derivatives of our very popular SRA-73683, provides Ethernet communication in combination with 2 amp, signal / power connections. The Ethernet cable is supplied terminated with a RJ45 jack, ready to connect.
The SRA-73801 and SRA-73808 utilize gold-on-gold contact technology with very low electrical noise for unparalleled performance and provides functional life that exceeds any competitive slip ring. This unit provides a 1/2 inch through-bore for shaft mounting and a compact 1-3/8 inch outside diameter for minimal space applications.
For more information about how Moog's ethernet slip rings can fit your specific application, contact our slip ring experts.
Features
- Fully compliant with IEEE 802.3 formats
- 10BaseT
- 100BaseTx
- 100BaseT2
- 1000BaseT - Speeds up to 120 RPM continuous
- 12, 24, 36 and 48 inch lead lengths
- Supplied with 1000BaseT Ethernet and 12, 2-amp circuits
Benefits
- Compact
- Plug-and-play Ethernet connection
Options
- Lead lengths of 12, 24, 36 and 48 inches
| SRA-73801 / SRA -73808 Specifications | |
|---|---|
| Operating Speed | 250 rpm* continuous |
| Ethernet Connections | 10 / 100BaseT and 1000BaseT |
| Circuit Options | Ethernet plus, 2 amp contacts |
| Voltage | 210 VDC on power circuits |
| Temperature Range | -40°C to +80°C |
| Contact Material | Gold |
| Current Rating | 2 amps |
| *Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature. | |
Contact Us
Typical Applications
- Video over Ethernet
- Motor control
- POE (Power-Over-Ethernet)
- CCTV IP-surveillance
