SRA-73683

1/2 INCH THROUGH-BORE MINIATURE SLIP RING CAPSULE

SRA-73683 Slip Rings with Through Bores

A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data. A slip ring is also called a rotary electrical joint, collector, commutator or swivel. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires.

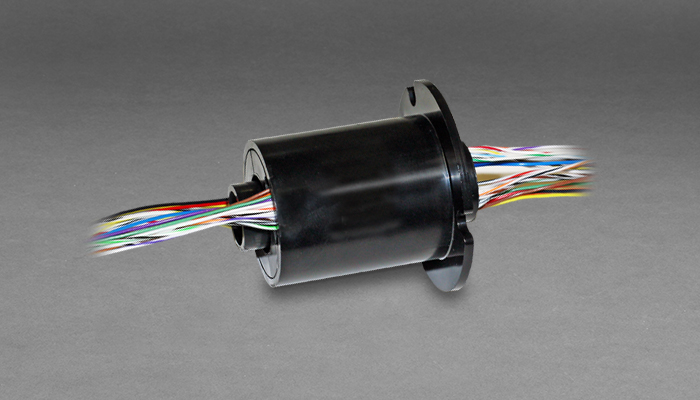

The SRA-73683 slip ring with through bores provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 1/2 inch through-bore for shaft mounting, and a compact 1.375 inch outside diameter and a very short overall length for minimal space applications. The SRA-73683 provides 2 amp circuits in 6, 12, 18 and 24 ring configurations.

For more information about how Moog's slip rings with through bores can fit your specific application, contact our slip ring experts.

Features

  • 1/2 inch through-bore
  • Compact 1.375 inch outside diameter
  • Speeds up to 250 rpm continuous
  • Continuous rotation of power and / or data signals
  • Ethernet model, SRA-73801, available

Benefits

  • Transfers power, as well as analog and digital signals
  • Compatible with data bus protocols
  • Compact packaging
SRA-73683 Specifications
Operating Speed 250 rpm* continuous
Number of Circuits 6, 12, 18, 24
Lead Length 12, 24, 36 and 48 inches
Lead Size / Type #26 AWG, Teflon® insulated, stranded
Voltage 210 VAC
Operating Temp. -40°C to +80°C
Contact Material Gold
Current Rating 2 A, per ring, max.
Electrical Noise 40 milliohm max. @ max. speed
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature.

Typical Applications

  • Precision rotary equipment
  • Semiconductor handling systems
  • Robotics
  • Camera systems
