Electromechanical Rotary Actuators

Gun/Turret/Radar Drives for Naval Systems

Moog’s series of high-torque, direct-drive, brushless motor, rotary actuators is designed for combat turret applications. They meet or exceed the demanding requirements of military environments to include the high-salt content of sea air, while offering world-class weapon pointing, stabilization, and improved slew rates for existing and new weapon turret systems. This series of high-torque motors eliminates the need for a gearbox between the motor and load and provides low-drive inertia for superior stabilization performance and high stiffness with a backlash free coupling. This electromechanical rotary actuator includes an integrated clutch/noback with a manual drive input.



CONTACT OUR EXPERTS >

Overview

Moog is a worldwide designer, manufacturer, and integrator of custom precision motion control and stabilization systems for the defense industry. Our electromechanical rotary and linear actuators are ideal for new systems, upgrading from older hydraulic systems, and sustainment service applications.

KEY FEATURES

  • Brushless DC motor
  • High torque at low rpm allows direct drive

                - Eliminates gearbox

                - Backlash free coupling

                - High stiffness

                - Very low drive inertia for superior stabilization performance


  • Integrated 24 VDC clutch, no-back and manual drive input (no shift required)
  • Adaptable mounting schemes and manual drive configurations
  • Complies with MIL-STD 810E / MIL-STD 461E
  • Built-in pivot pin with adaptable bushings allows for simple installation and adjustment

Models and Specifications

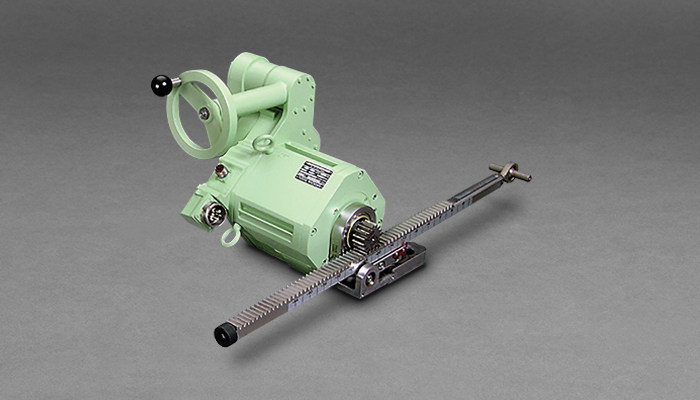

Electromechanical Gun Elevation Actuator: C34R390M
Peak torque
Continuous torque
No load speed
Rated power
Supply voltage
Weight
910 INLB (103 Nm)
300 INLB (34 Nm)
390 rpm
1.25 hp (932W)
24VDC,
48VDC,
270VDC,
or 650VDC
90 lbs (41 kg)
Peak torque
910 INLB (103 Nm)
Continuous torque
300 INLB (34 Nm)
No load speed
390 rpm
Rated power
1.25 hp (932W)
Supply voltage
24VDC,
48VDC,
270VDC,
or 650VDC
Weight
90 lbs (41 kg)

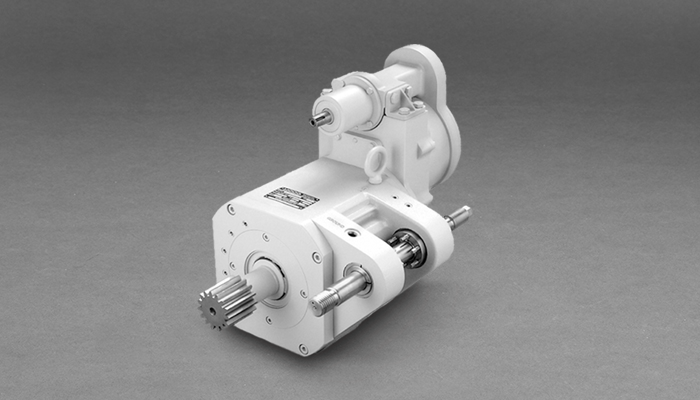

Gun and Turret Drive Actuator
Peak torque
Continuous torque
No load speed
Rated power
Supply voltage
Weight
910 INLB (103 Nm)
300 INLB (34 Nm)
390 rpm
1.25 hp (932W)
24VDC,
48VDC,
270VDC,
or 650VDC
90 lbs (41 kg)
Peak torque
910 INLB (103 Nm)
Continuous torque
300 INLB (34 Nm)
No load speed
390 rpm
Rated power
1.25 hp (932W)
Supply voltage
24VDC,
48VDC,
270VDC,
or 650VDC
Weight
90 lbs (41 kg)
