AC6310 Slip Ring

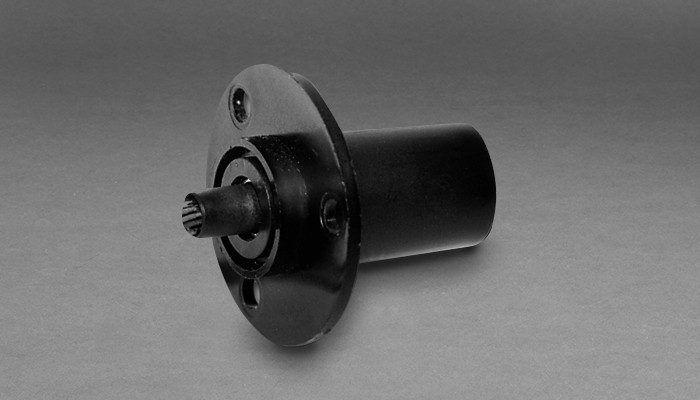

COMPACT SLIP RING IN VARIOUS CIRCUIT CONFIGURATIONS

A slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power and / or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.
The AC6310 provides three, 10 amp circuits and 3 or 6 signal circuits. This compact power and signal handling design provides unique capability for many challenging applications.
For more information about how Moog's compact slip ring capsule can fit your specific application, contact our slip ring experts.
Features
- 6, 9, 12 and 15 circuit models
- 5 amp / 2 amp and 10 amp / 2 amp circuit combinations
- Precision ball bearings meet or exceed life requirements for most commercial applications
- Speeds up to 250 rpm continuous
- Compact size: 1.38 inch long
- Gold-on-gold contacts
- 12, 24, 36, 48 inch standard lead lengths (longer lead lengths are available)
- Sealed units are also available (dust and light splash only)
- Flexible silver-plated copper, color-coded, Teflon® insulated lead wires
- Fully compatible with both analog and TTL control level signals
- Also available with 6, 12, 18, and 24, 2 amp rings
Benefits
- Smooth running
- Low torque
- Compact
- Very low noise (electrical)
- Quick shipment
Options
- Splash seals for dust and moisture resistance
- Metal housings with and without flanges
AC6310 Specifications | |
---|---|
Operating Speed | 250 rpm* continuous |
Number of Circuits | 3 @ 10 amps and 3 or 6 @ 2 amps |
Lead Lengths | 12, 24, 36 and 48 inches |
Lead Size / Type | 2 amp, 26 gauge silver plated copper, Teflon® 10 amp,16 gauge tin plated copper, Teflon® |
Voltage | 120 VAC |
Max Ambient Temperture | -40°C to +80°C |
Contact Material | Gold |
Current Rating | 10 amps and 2 amps / ckt |
Noise | 60 milliohms maximum tested @ 6 VDC, 50 milliamps when running @ 5 rpm |
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature. |
Contact Us
Typical Applications
- CCTV pan / tilt camera mounts
- Electrical test equipment
- Manufacturing and process control equipment
- Indexing tables
- Robotics (end-effectors, arms, vision systems, sensors)
- Exhibit / display equipment
- Medical equipment
