Type 3 Rotary Incremental Actuator

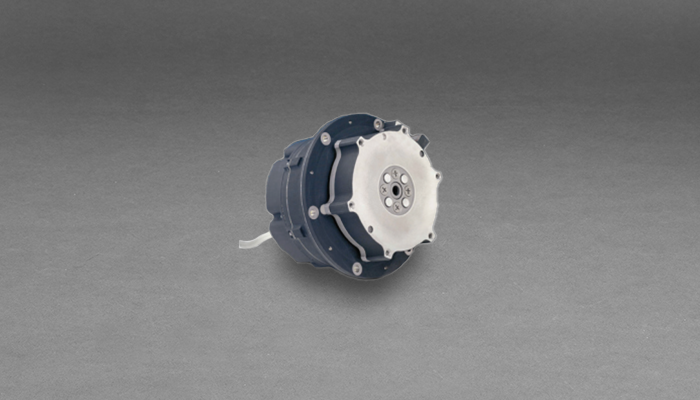

The Type 3 actuator is one of our more popular designs, with hundreds of units delivered and successfully operating in space. The standard design is based on the Moog heritage actuator concept, a compact coaxially nested motor and harmonic drive gear system. The most popular version incorporates a potentiometer for position sensing with a redundant three phase motor. As with all Moog actuator products, incorporating optional equipment based on the application is possible. This flexible design can accommodate hard stops, 2 or 3 phase stepper motors, brushless DC motors, a variety of position sensors, cable management systems or other application-specific options. These actuators are commonly used in Antenna Pointing Mechanism applications. The actuators can be incorporated into a biaxial gimbal configuration to fit any application. Contact Moog application engineers for assistance with actuator selection and design options.
Key Features:
- Compact coaxially nested motor and harmonic drive provides fine resolution
- Can accommodate 2 and 3 phase motors
- Low weight
- Zero backlash
- Optimized for low power consumption
- Small angle permanent magnet stepper provides relatively high holding and running torque
Specifications
| Parameter | Units | Basis | Data |
Output Step Angle | Degrees | Standard | 0.009375 |
| Steps/Revolution | - | Standard | 38,400 |
| Harmonic Drive ratio | - | Standard | 160:1 |
| Motor Step Angle | Degrees | Standard | 1.5 |
| Max. Output Step Rate | Step/Sec (Deg/Sec) | Maximum | 350 (3.28) |
| Torsional Stiffness | lb-in/rad | Typical | 140,000 |
| N-m/rad | Typical | 15,800 | |
| Shaft Load Capability Axial | lb | Maximum | 2,500 |
| N | Maximum | 11,000 | |
| Traverse Load Capability | lb | Maximum | 2,100 |
| N | Maximum | 9,400 | |
| Moment Load Capability | lb-in | Maximum | 1800 |
| N-m | Maximum | 203 | |
| Moment Stiffness | lb-in/rad | Typical | 370,000 |
| Power | Watts | Typical | 14 |
| Inertial Capability | Kg-m2 | Typical | 35 |
| High | 100 | ||
| Output Torque | lb-in | Typical | 350 |
| N-m | Typical | 39.5 | |
| Holding Torque: Powered | lb-in | Typical | 500 |
| Typical | 56.5 | ||
| Holding Torque: Unpowered | lb-in | Typical | 300 |
| N-m | Typical | 33.9 | |
| Total Assembly Weight (with potentiometer) | lb | Typical | 4.2 |
| kg | Typical | 2 |
