Model 907 - PC-104 Cards
The family of Focal™ Model 907 products provides compact and rugged video/data multiplexers and fiber-optic transmission systems.
The Model 907 was designed for applications requiring the transmission of video and/or data over an optical link. A modular PC/104 form-factor and flexible design architecture supports reconfiguration and expansion of the multiplexer system to fit the specific data requirements of each application.
Model 907 systems are assembled from four main categories of cards:
- Multiplexer motherboards
- Media converters
- Expansion cards
- System modules
Multiplexer Motherboards
| Model | Description | Supported Video Formats | Video Channels | Supported Data Formats | On-board Data Channels | Support for E-Diagnostics |
||
|---|---|---|---|---|---|---|---|---|
| 907E | 2-Channel Video, Ethernet and Serial Data Mux |
NTSC, PAL | 2 | RS-232/422/485 (switch selectable) / 10/100/1000 Base-T, Backplane data | 4 / 1 | Yes | ||
| 907-R/C | 3-Channel Video/Data Mux | NTSC, PAL, RGB, S-Video (Y/C) |
3 | RS-232, RS-485/422, Backplane data |
6 | No | ||

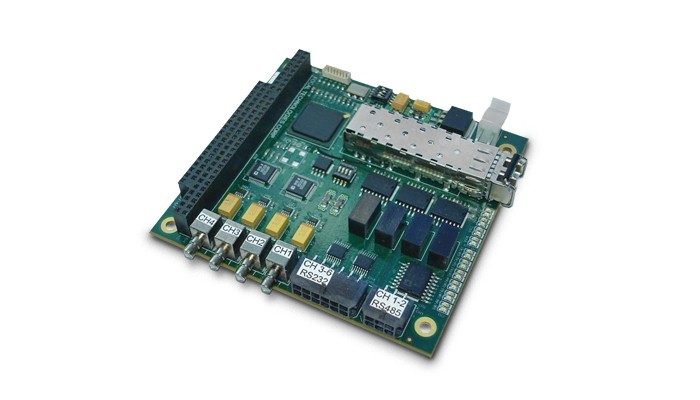

| 907PLUS | 4-Channel Video/Data Mux |
NTSC, PAL, RGB, S-Video (Y/C) |
4 | RS-232, RS-485/422, Backplane data |
6 | Yes | ||
| 907V | 6-Channel Video Mux |
NTSC, PAL, RGB, S-Video (Y/C) |
6 | Backplane data | None | Yes | ||
| 907-HDM2 | 2-Channel HD-SDI/Data Mux |
HD-SDI (SMPTE-292) |
1-2 HD-SDI | RS-232, RS-485/422, Backplane data |
2 | Yes | ||
| 907-GEM | 4-Channel Gigabit Ethernet Mux |
GigE Vision | 4 max | 10/100/1000 Base-T Ethernet, Backplane Data |
4 Ethernet | Yes | ||
Media Converter Cards
| Media Converter | Description | Channel Direction |
NRZ Data Rate | I/O Connectors |
Support for E-Diagnostics |
|||
|---|---|---|---|---|---|---|---|---|
| 907-HDV | Single HD-SDI, SDI | Unidirectional | 143 – 1485 Mbps |
2 x SMB In, 2 x SMB Out |
Yes | |||

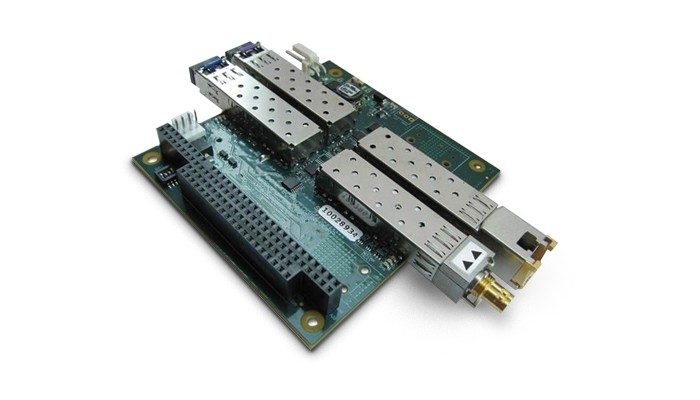

| 907-FLEX | Flexible Quad Media Converter | Unidirectional or Bidirectional | 270 – 2970 Mbps | Up to 4 x HD-BNC, 1 x RJ45 | Yes | |||
| 907-GBE | Single Gigabit Ethernet Media Converter |
Bidirectional | 10/100/1000 Mbps |
1 x RJ-45 | No | |||
| 907-GBE2 | Dual Gigabit Ethernet Media Converter |
Bidirectional | 10/100/1000 Mbps |
2 x RJ-45 | Yes | |||
| 907-GBES | Quad Gigabit Ethernet Switch |
Bidirectional | 10/100/1000 Mbps |
4 x RJ-45 | Yes | |||
| 907-ECL | Single ECL/PECL/Hotlink Media Converter | Unidirectional | 30 – 600 Mbps | 2 x SMB In, 2 x SMB Out |
Yes | |||
Expansion Cards
| Expansion Card |
Description | BP Channels Used |
Max. Data Rate |
I/O Connectors | ||||
|---|---|---|---|---|---|---|---|---|
| 907-232 | 8-Channel RS-232 Card |
1 | 120 kbps | 4 x 8 pin Molex | ||||
| 907-485 | 8-Channel RS-485/ 422 Card |
1, 2, 4 | 250 kbps to 2.5 Mbps1 | 4 x 8 pin Molex | ||||
| 907-SER | 8-Channel RS-232/485/ 422 Card5 |
1, 2, 4 | 250 kbps to 2.5 Mbps |
4 x 8 pin Molex | ||||
| 907-ADC/DAC | 8-Channel, 8/12-bit ADC/DAC3 Card |
1 | 50 kHz Bandwidth |
2 x 8 pin Molex | ||||
| 907-AUDIO | 4-Channel, 24-bit Audio Card |
1 | 20 kHz Bandwidth |
4 x 2 pin WAGO 2 x 3 pin WAGO |
||||
| 907-CIB | 4-Channel Control Interface4 Card |
1 | 50 kHz Updates |
4 x 2-Pin WAGO 2 x 3-Pin WAGO |
||||
| 907-AIB | Dual Socket AIB Adaptor |
1, 2 | Up to 2.5 Mbps2 |
2 x 4-Pin WAGO | ||||
| 907-EIBS | 10 Mbps Ethernet Switch Card |
1 | 10 Mbps | 3 x RJ-45 | ||||
| 1. Maximum NRZ data rate increases with number of backplane channels used on the motherboard 2. Maximum NRZ data rate or analog bandwidth depends on the AIB plug-in modules installed. 3. Use 907-ADC Analog Input Card, P/N 907-0218-00 with complementary 907-DAC Analog Output Card, P/N 907-0219-00 4. CIB inputs are individually configurable as switch or voltage controlled; CIB outputs are all solid state relays, max. current 250 mA. 5. 907-SER supports Ethernet diagnostics when used with the 907-DIAG-E |
||||||||
Adaptable Interface Boards (AIB)
| AIB Card | Description | Channel Direction |
NRZ Data Rate | I/O Connectors | Options | |||
|---|---|---|---|---|---|---|---|---|
| AIB-232 | 1 x RS-232 | Bidirectional | 120 kbps | 4-pin WAGO headers on 907-AIB adapter card | Responder Trigger |
|||
| AIB-485 | 1 x RS-485/422 | Bidirectional | 2.5 Mbps | AC-Coupled 485, TTL |
||||
| AIB-HYDRO | 1 x Hydrophone | Unidirectional | 30 Hz - 30 kHz BW |
IRIG-B, Audio | ||||
| AIB-ARCNET | 1 x Tritech ARCNET |
Bidirectional | 156 kbps/78 kbps | Terminations | ||||
| AIB-MS900 | 1 x MS-900 Analog Sonar |
Bidirectional | 5 - 30 kHz, 380 - 580 kHz |
Low Speed Telemetry (LF) |
||||
| AIB-CAN Bus | 1 x CAN Bus Bridge |
Bidirectional | 62.5 kbps - 1 Mbps |
Repeater Mode | ||||
Optical Cards
| Optical Card | Description | Features/Options | |||||||
|---|---|---|---|---|---|---|---|---|---|
| 907-WDM | WDM Optics Card, 1310/1550 nm, Singlemode | Card-mounted, PC/104 | |||||||
| 907-CWDM | CWDM Optics Card, 1471/1491 nm with 1310/1550 nm Bypass, Singlemode | 1310/1550 nm bypass port for easy upgrade of existing 1310/1550 nm system | |||||||
| 907-CWDM-MM | CWDM Optics Card, 1471/1491 nm with 1310/1550 nm Bypass, Multimode |
1310/1550 nm bypass port for easy upgrade of existing 1310/1550 nm system | |||||||
| 907-CWDM-4R1 | CWDM Optics Card, 1471 - 1531 nm, Singlemode, 20 nm Spacing |
Optional 1310 nm Bypass Port |
|||||||
| 907-CWDM-8R | CWDM Optics Card, 1471 - 1611 nm, Singlemode, 20 nm Spacing |
Optional 1310 nm Bypass Port |
|||||||
| 907-SPLIT-SM | 1 x 2 Fiber Splitter Card, Singlemode | Provides redundant fiber operation |
|||||||
| 907-FOS-SM | 1 x 2 Fiber Switch Card, Singlemode | Provides fiber-optic switch with manual or remote digital control (TTL) | |||||||
Oil Filled/Pressure Tolerant
| Card | Card Type | Description | Pressure Rating2 | |||||
|---|---|---|---|---|---|---|---|---|
| 907+P | Multiplexer Motherboard |
4-Channel Video/Data Mux | 6000 psi | |||||
| 907V-P | Multiplexer Motherboard |
6-Channel Video Mux With Bidi Transceiver |
3000 psi | |||||
| 907V-P | Multiplexer Motherboard |
6-Channel Video Mux | 6000 psi | |||||
| 907-GBE-P | Media Converter | Single Gigabit Ethernet Media Converter |
6000 psi | |||||
| 907-GBE2-P | Media Converter | Dual Gigabit Ethernet Media Converter |
6000 psi | |||||
| 907-GBES-P | Media Converter | Quad Gigabit Ethernet Switch | 6000 psi | |||||
| 907-232-P | Expansion Card | 8-Channel RS-232 Card | 6000 psi | |||||
| 907-485-P | Expansion Card | 8-Channel RS-485/422 | 6000 psi | |||||
| 907-SER-P | Expansion Card | 8-Channel RS-232/485/422 | 6000 psi | |||||
| 907-CIB-P | Expansion Card | 4-Channel Control Interface | 6000 psi | |||||
| 907-AIB-P | Expansion Card | Dual Socket AIB Adaptor | 6000 psi | |||||
| 907-EIBS-P | Expansion Card | 10 Mbps Ethernet Switch Card | 6000 psi | |||||
| 907-CWDM-4R1-P | Optical Card | CWDM Optics Card, 1471-1531 nm, Singlemode, 20 nm Spacing |
6000 psi | |||||
| 907-CWDM-8R-P | Optical Card | CWDM Optics Card, 1471-1611 nm, Singlemode, 20 nm Spacing |
6000 psi | |||||
| 907-WDM-P | Optical Card | WDM Optics Card, 1310/1550 nm, Singlemode | 6000 psi | |||||
| 907-SPLIT-SM-P | Optical Card | 1 x 2 Fiber Splitter Card, Singlemode |
6000 psi | |||||
System Cards
| System Cards | Description | Features/Options | |||||||
|---|---|---|---|---|---|---|---|---|---|

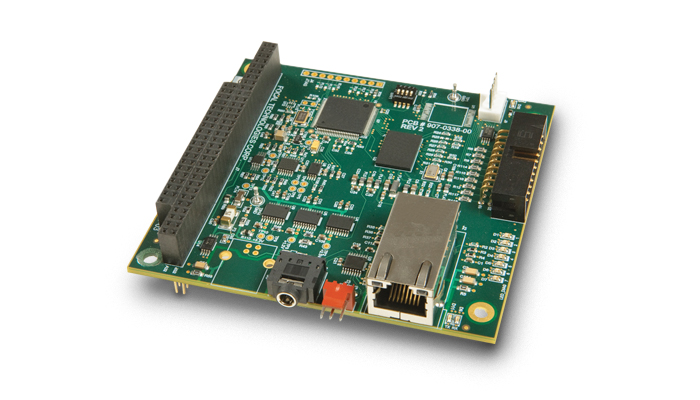

| 907-DIAG-E | Ethernet Diagnostic Card | Ethernet Output. API and sample GUI available. Reads diagnostics from compatible cards in 907 stacks |
|||||||
| 907-DC-24 | Isolated DC-DC Power Supply Card for 18-30 VDC Input |
Supports 18-30 VDC input, provides multiple +5 VDC outputs |
|||||||
| 907-EURO | Eurocard Adaptor | 4 HP and 8 HP options available, typically supplied assembled with 907 card |
|||||||
