AC6438

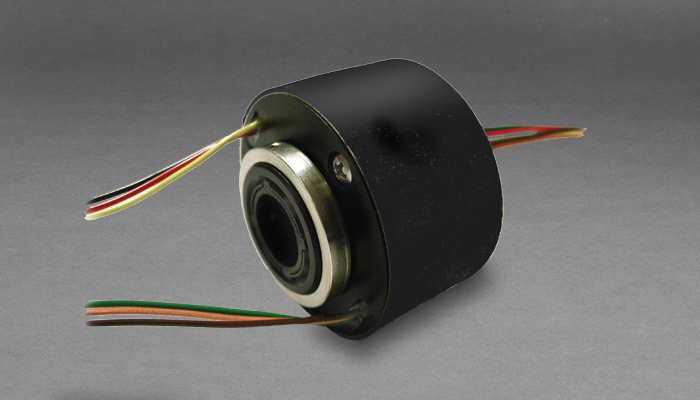

1/2 INCH THROUGH-BORE MINIATURE SLIP RING CAPSULE
A slip ring capsule can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transferring power and / or data. A slip ring is also called a rotary electrical joint, collector, commutator or swivel. A slip ring can improve system performance by simplifying operations and eliminating damage prone wires.
The AC6438 provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 1/2 inch through-bore for routing of hydraulic or pneumatic lines, and a compact 2.1 inch outside diameter and a very short overall length for minimal space applications. The AC6438 slip ring with through bores provides 5 amp circuits in 6, 12, 18 and 24 ring configurations. Similar in design to our very popular AC4598 and AC6200 series, this design features long life, fiber brush contact technology for ultimate performance in many challenging applications.
For more information about how Moog's slip rings with through bores can fit your specific application, contact our slip ring experts.
Features
- 1/2 inch through-bore
- Compact 2.1 inch outside diameter
- Speeds up to 250 rpm continuous
- Multiple circuit configurations
- Continuous rotation of power and / or data signals
- High-impact thermoplastic construction
- Gold plated rings
- Available with Ethernet
Benefits
- Transfers power, as well as analog and digital signals
- Compatible with data bus protocols
- Fiber brush technology provides long life and maintenance free operation
- Compact packaging
Options
- 24, 36 and 48 inch leads
- Alternate lead exits
AC6438 Specifications | |
---|---|
Operating Speed | 250 rpm* continuous |
Number of Circuits | 6, 12, 18 or 24 |
Lead Length | 12 inch standard |
Lead Size / Type | 22 AWG |
Voltage | 240 VAC |
Operating Temp. | -40°C to +80°C |
Current Rating | 5 amps / circuit |
Electrical Noise | 100 milliohms max. |
*Please note that the operational life of the unit is dependent upon rotational speed, environment and temperature. |
Typical Applications
- Precision rotary equipment
- Semiconductor handling systems
- Industrial machinery
- Robotics
