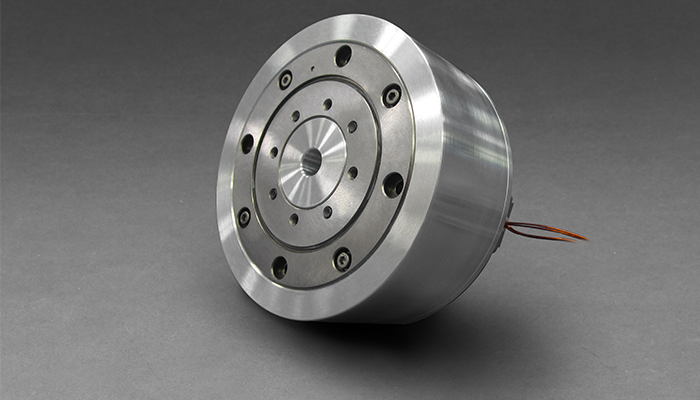

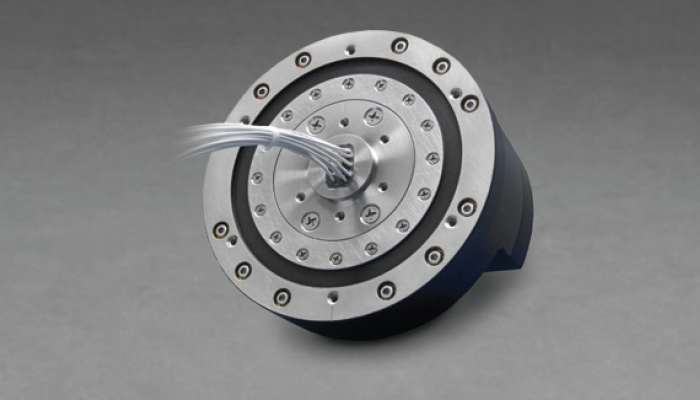

Small Satellite Solar Array Drive Assembly (SADA)
The small satellite Solar Array Drive Assembly (SADA) is a lightweight and compact power solution for positioning solar array panels. +/- 184° rotation of the solar array is facilitated by the integrated motor and twist capsule. Output position telemetry is made available using a potentiometer. The drive axis is comprised of a 2 phase stepper motor and a gear transmission accommodating an open-loop command and control scheme.
Key Features:
- LEO, MEO and GEO orbit capable
- Low noise twist capsule design
- High stiffness of output
- Compact design
- Moog compatible drive electronics available
Specifications
| Features | Units |
| Unit Mass | 3.00 lbm [1.36 kg] maximum |
| Dimensions (L W H) | Ø4.5” [114.3 mm] x 3.1” [78.74 mm] |
| Output Rate | 1.0˚ /sec maximum |
| Range of Motion | +/- 184˚ |
| Operating Voltage | 22 - 34 VDC |
| Current Draw | 0.220 A Total (.110A per phase, current limited) |
| Output Torque | 50 lbs-in [5.65 Nm] nominal |
| Holding Torque (Un-powered) | 4.43 lbs-in [.5 Nm] minimum |
| Power | 3.7 Watts |
| Output Step Size | 0.018˚ |
| Operating Temperature | -30 to 65°C |
| Cycle Life | 20,000 Revs of output |
| Power Transfers | 16 power [single line] transfers (8 power circuits) @ 1.4 A/transfer |
| Signal Transfers | 5 signal [single line] transfers @ 0.1 A/transfer |
| Ground Transfers | 2 ground [single line] transfers @ 1.4 A/transfer 2 internal (output flange) grounds |
| Radiation Capability | 100 Krad |
