Model 914 - Modular
The Model 914 media converter and multiplexer technology enables the transfer of high definition 3G/HD-SDI video, analog composite video, 10/100/1000 Base-T(X) Ethernet, serial data signals, along with specialty data types over a fiber optic communication channel. These credit card sized electronic cards have been designed specifically for use in harsh marine and industrial environments. Their form factor allows for integration into compact enclosures and pressure bottles.
There are two primary types of Model 914 systems:
914-X Series

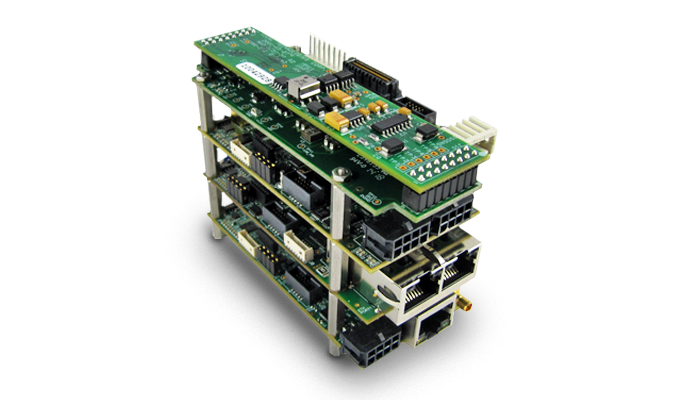

Representing the latest Focal multiplexing technology, the 914-X series uses a modular architecture and optical speeds of up to 6 Gbaud to reduce system size, power and cost. 914-X series cards have standard diagnostics compatible with an included Focal software GUI as well as LED indicators and LED drivers for cost-effective enclosure integration.
Models and Specifications
| Model | Card Type | Description | Diagnostics | Optical Options |
| Motherboard | HD Video, Ethernet and Serial Data Multiplexer |
Dedicated RS232 LEDs LED Header |
Bi-directional Single Fiber (Standard); CWDM (Optional); Pressure Tolerant (Optional) | |
| 914-VDX 914-EX 914-AX 914-DX |
Expansion Cards | Composite Video Serial Data Ethernet Speciality Signals |
RS232 (via 914-HDE) LEDs LED Header |
Shares Optical Bandwidth with 914-HDE |
| 914-HDV2 | Media Converter | Dual HD Video Media Converter | Dedicated RS232 LEDs LED Header |
CWDM (Standard) |
| 914-CWDM | Optical Card | CWDM Optics Card, 1471/1491 nm with 1310/1550 nm Bypass, Singlemode | None | 1310/1550 nm Bypass Port for Easy Upgrade of Existing 1310/1550 nm System |
| 914-CWDM-4R1 | Optical Card | CWDM Optics Card, 1471-1531 nm, Singlemode, 20 nm Spacing | None | Optional 1310 nm Bypass Port |
| 914-CWDM-8R | Optical Card | CWDM Optics Card, 1471-1611 nm, Singlemode, 20 nm Spacing | None | Optional 1310 nm Bypass Port |
| 914-FOS | Optical Card | 1x2 Fiber Switch Card, Singlemode | None | Provides Fiber Optic Switch With Manual or Remote Digital Control (TTL) |
| 914-SPLIT | Optical Card | 1 x 2 Fiber Splitter Card, Singlemode | None | Provides Redundant Fiber Operation |
Classic Model 914

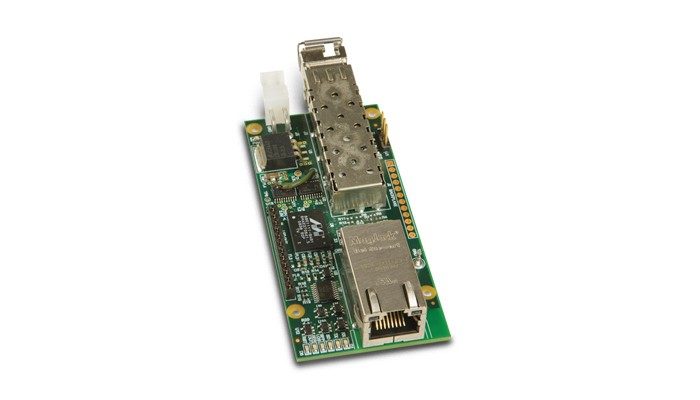

Classic Model 914 cards have the same convenient form factor, but have reduced expansion capabilities and no software diagnostics. Their low optical data rates make them an ideal solution for legacy multi-mode fiber applications.
| Model | Description | Supported Video Formats | Supported Data Formats | Ethernet Channels | Low Speed Expansion Channels |
| Video/Data Multiplexer | 1 Channel NTSC/PAL |
4 Channels RS232/485/422 | None | 2 Channels | |
| 914-EIBS | Ethernet Switch Expansion Card | None | None | 2 Channels 10/100 Base-T(X) | Requires 1 |
| 914-MCS | Fast Ethernet Media Converter | None | None | 2 Channels 10/100 Base-T(X) | None |
| 914-GBE | Gigabit Ethernet Media Converter | None | None | 1 Channel 10/100/1000 Base-T(X) | None |
